Cone crusher
China cone crusher for stone sand mining fine crushing machine
Cone crusher working site video
How many kinds of cone crusher
The cone crusher mainly has 4 kinds of types:
Spring cone crusher , Simmons cone crusher , Single cylinder cone crusher , multi cylinder cone crusher

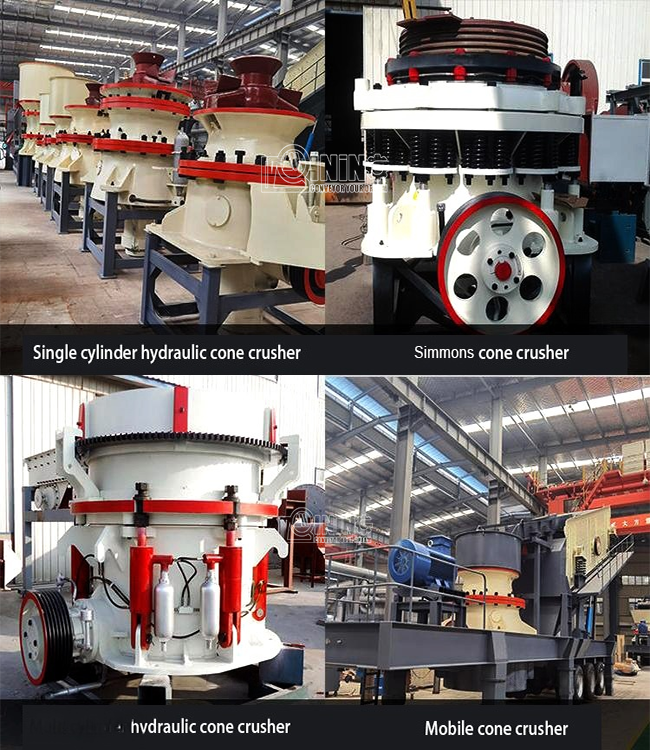

Cone crusher Category
Cone crusher in sand making plant

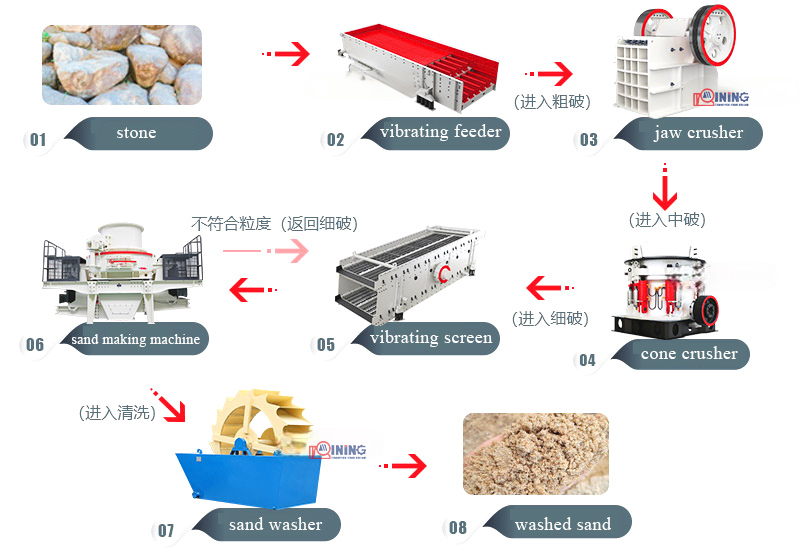

Cone crusher in sand making machine plant
Step 1: Primary crusher
Feed big stone by feeder, jaw crusher
Step2：Secondary crusher
Stone after jaw crusher sent to cone crusher by vibrating screen then to sand making machine and sand washing plant
Step3:sand making
Step: Sand washer
Why choose cone crusher instead of other crusher
1.Wear resistant and durable, not easily damaged
The cone crusher uses alloy materials and has strong power. When processing high hardness ores, the wear of vulnerable parts is relatively light, and it is not easy to cause equipment damage due to the hardness of the ore.
2.High crushing ratio and high output efficiency
The cone crusher has a high crushing ratio and processing capacity, which is 30% higher in output per hour than the same crushing equipment.
3.Uniform particle size of finished products
4.Effectively expel foreign objects without causing damage to the equipment
The cone crusher adopts a hydraulic cleaning system, which can effectively discharge foreign objects without causing damage to the equipment.
Cone crusher working principle
The difference between 4 kinds of cone crusher

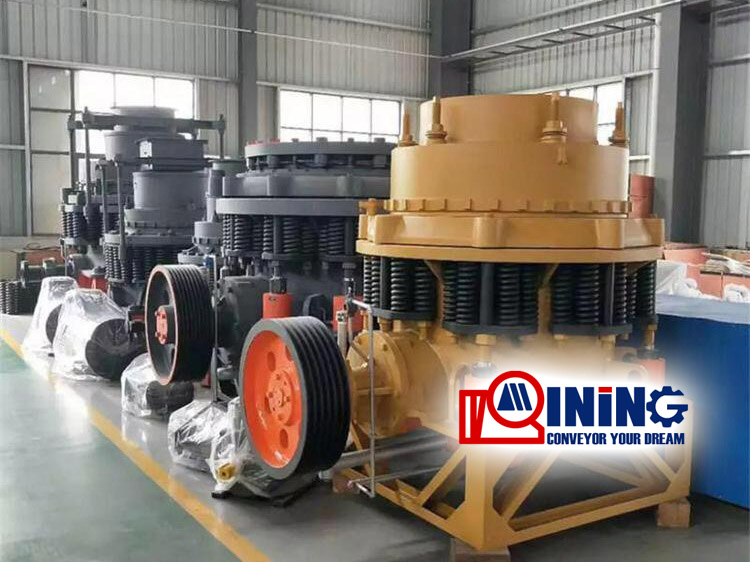

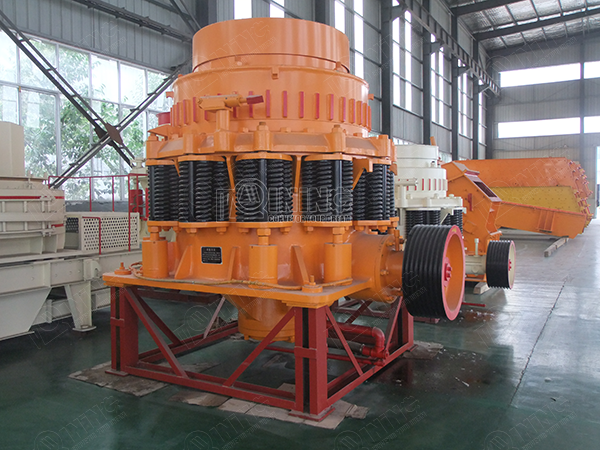

1.Simmons cone crusher
Due to its low price, stable performance, and extensive user experience in maintenance, Simmons cone crusher can be used as a medium and fine crusher in situations where product particle size requirements are not high. It is currently the most commonly used cone crusher in the world.

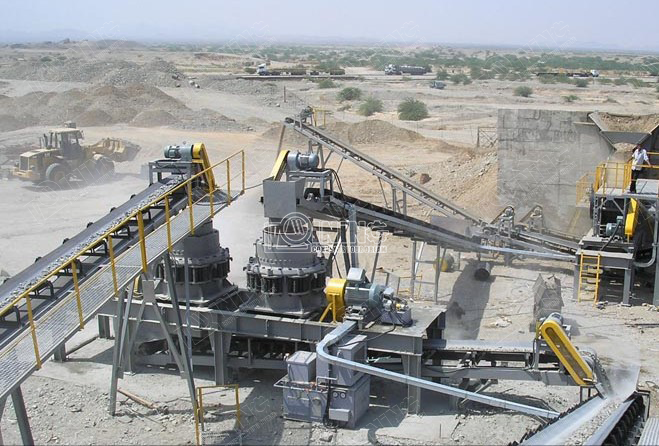

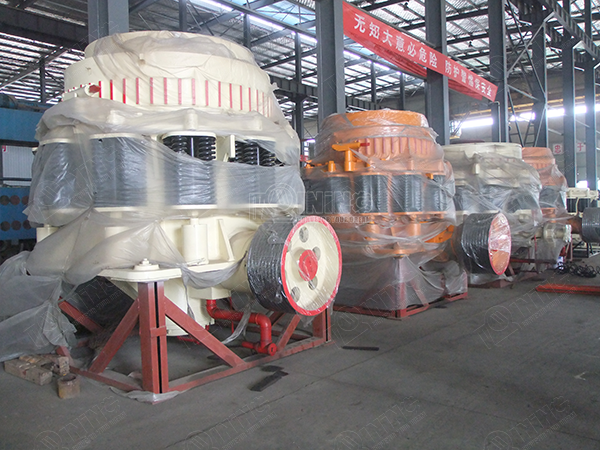

2.Spring cone crusher
The product particle size and shape of the spring cone crusher are relatively good, which can not only provide finer grade raw materials for the mill, but also an effective equipment for the preparation of machine sand.
The disadvantages of this machine are high energy consumption, bulkiness, and low output. With the increasingly high-energy development direction of cone breaking, this machine will gradually be replaced by hydraulic cone breaking.

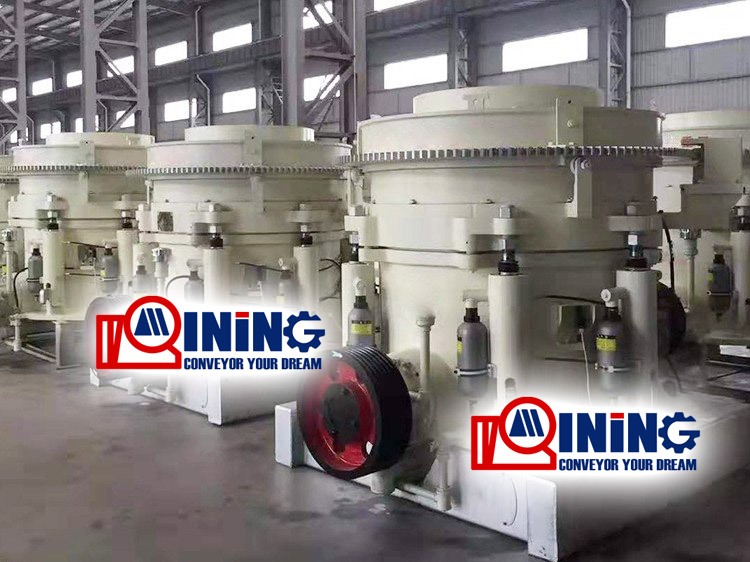

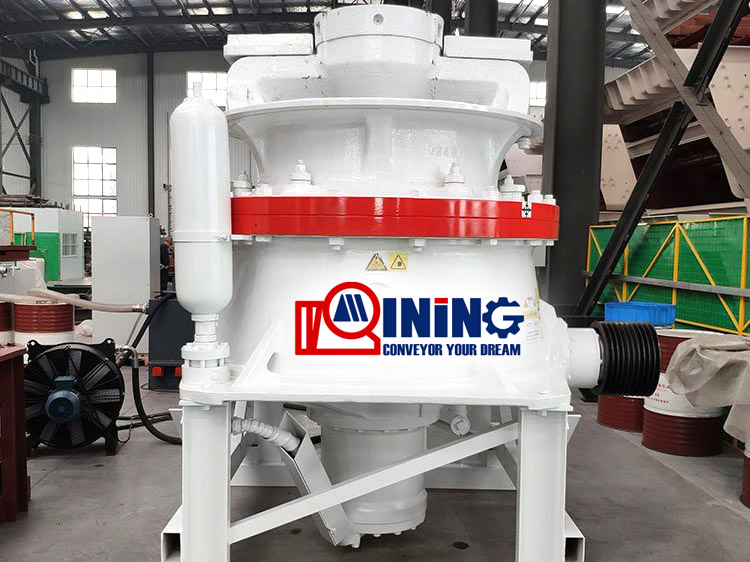

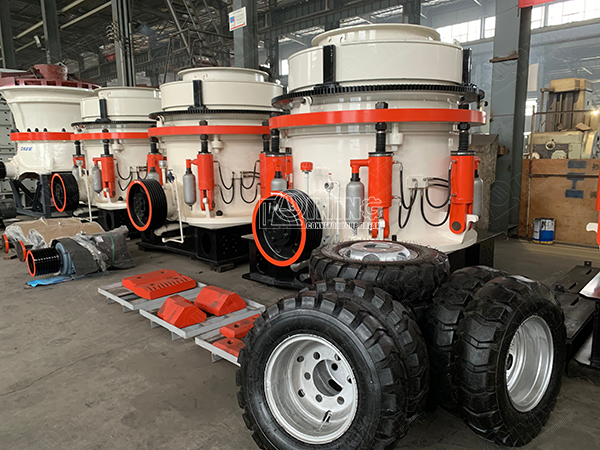

3.Single cylinder and multi cylinder hydraulic cone crusher

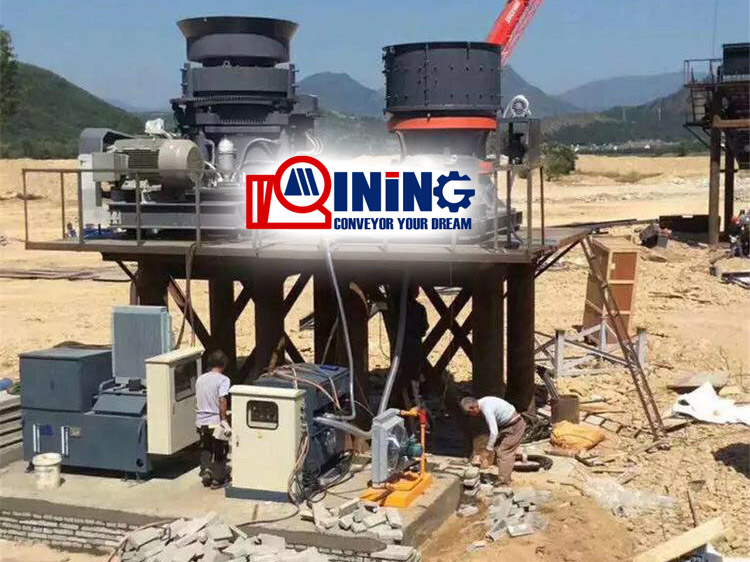

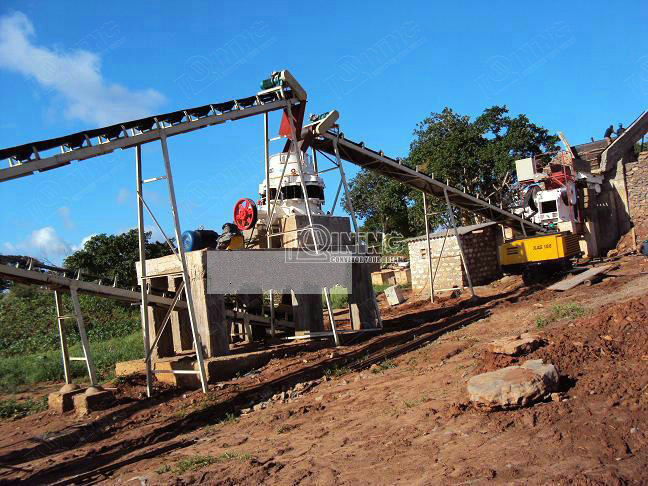

Single cylinder and multi cylinder hydraulic cone crusher working site
Both single cylinder and multi cylinder hydraulic cone crushers belong to high-performance crushers, and their different structures give them their own advantages and disadvantages.
The single cylinder hydraulic cone crusher has better crushing effect and greater throughput capacity. However, the multi cylinder hydraulic cone crusher has a higher content of fine materials under the discharge port, resulting in better crushing effect and better laminated crushing effect
Compared to single cylinder hydraulic cone crushers, multi cylinder hydraulic cone crushers have advantages in structural performance, maintenance, and crushing efficiency. The price of multi cylinder hydraulic cone crushers may be higher, which is also a key consideration for users when choosing.
Parameter of the Cone crusher
Spring cone crusher parameter
Simmons cone crusher parameter
Single cylinder cone crusher parameter
Multi cylinder cone crusher parameter
Which material suitable for cone crusher
River pebbles, granite, basalt, iron ore, shale, limestone, coal gangue, quartz, diabase, marble, copper ore, pebbles, etc.
Where cone crusher can be used
Widely used in industries such as metal and non-metallic minerals, cement, construction, sand and gravel metallurgy, etc
