Fluorite ore rotary dryer
Fluorite ore dryer rotary drying for fluorspar mine - China Henanmining
Based on the characteristics of fluorite ore, our company's fluorite ore rotary dryer is equipped with multiple functional areas such as guide area, drying, crushing, and cleaning. It has the advantages of strong overload resistance, large processing capacity, and low fuel consumption.
Application - Fluorite ore rotary dryer
Fluorite ore rotary dryer is Used for Drying all kinds of fluorite,fluorspar,and also Lead, zinc, copper, tungsten, tin, molybdenum, gold, bismuth, iron manganese, monazite, zircon, yellow jade, quartz, calcite, etc
Working principle - Fluorite ore rotary dryer

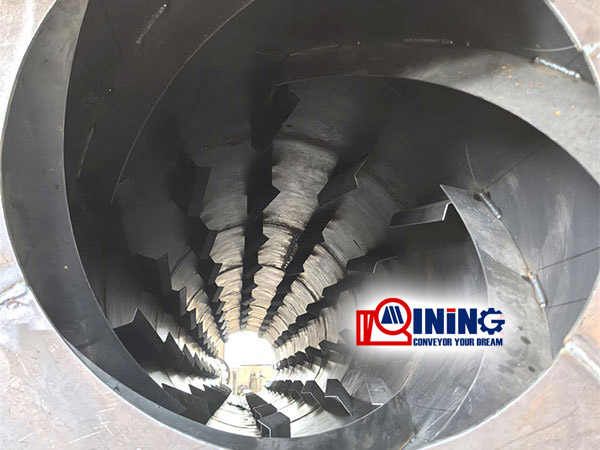

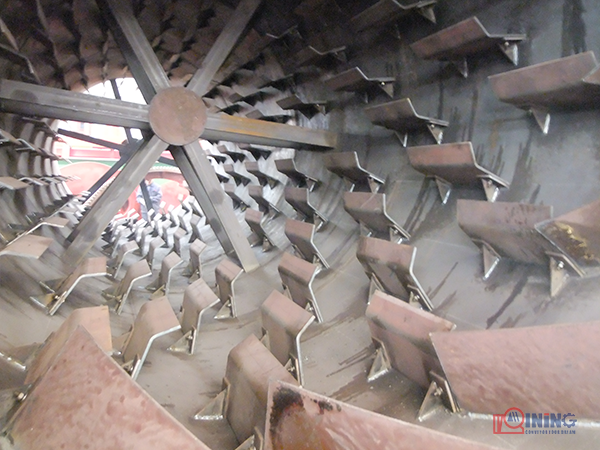

The fluorite ore dryer is equipped with various devices such as lifting plates, grate type wing plates, and chains. The fluorite mineral material enters the cylinder and is lifted, dispersed, and fully contacted with hot air during rotation, achieving the purpose of drying.
The linear contact area between the trailer and the rolling ring of the fluorite ore dryer can greatly reduce the losses of the dryer.
Features - Fluorite ore rotary dryer
1. The fluorite dryer adopts high-temperature hot air drying technology to achieve rapid dehydration and quality improvement;
2. Heating equipment such as gas, fuel, coal, biomass, etc. can be selected according to the user's operating conditions
3. The equipment has a long service life, and the fluorite dryer adopts a "self-aligning supporting wheel device", which makes the cooperation between the supporting wheel and the rolling ring in linear contact, greatly reducing losses;
4. Adopting PLC automatic control system to achieve remote operation and control.
Parameter of the Fluorite ore rotary dryer
| Model | Diameter(m) | Center depth(mm) | Sedimentation area (㎡) | Capacity(m³/h) | Rotating speed(min/r) | Oil pump power motor | hydraulic Reducer | Power(kw) |
| GSZ-6 | 6000 | 8810 | 28 | 25-40 | 3-10 | 10MCY-1B | OILP010069-NHMⅡ-100 | 4 |
| GSZ-9 | 9000 | 10295 | 63 | 50-100 | 3-10 | 25SCY-1B | OILP010099-NHMⅡ-100 | 5.5 |
| GSZ-10 | 10000 | 11233 | 78.5 | 60-120 | 3-10 | 25SCY-1B | OILP010099-NHMⅡ-100 | 5.5 |
| GSZ-12 | 12000 | 11933 | 113 | 90-180 | 4-12 | 25SCY-1B | OILP010099-NHMⅡ-100 | 7.5 |
| GSZ-15 | 15000 | 11938 | 176 | 100-350 | 5-15 | 25SCY-1B | OILP010099-NHMⅡ-100 | 7.5 |
| GSZ-18 | 18000 | 13450 | 254 | 200-400 | 5-15 | 40SCY-1B | OILP010099-NHMⅡ-100 | 11 |
| GSZ-20 | 20000 | 14918 | 314 | 250-500 | 6-20 | 40SCY-1B | OILP010099-NHMⅡ-100 | 11 |
| GSZ-24 | 24000 | 17301 | 452 | 1000-1500 | 6-20 | 63SCY-1B | OILP015103-NHMⅡ-200 | 15 |
| GSZ-30 | 30000 | 17860 | 706 | 1500-2200 | 8-25 | 63SCY-1B | OILP015103-NHMⅡ-250 | 22 |
| GSZ-35 | 35000 | 28990 | 962 | 2000-3000 | 8-25 | 80SCY-1B | OILP015103-NHMⅡ-250 | 22 |
Fluorite ore introduction
Fluorite has a wide range of applications in metallurgy, chemical industry, building materials and other fields, with stable demand in traditional industries. With the rapid development of emerging fields such as new energy and fluorine-containing new materials, the demand for fluorite is also constantly increasing.
Fluorite mines are mainly concentrated in countries and regions such as Mexico, China, South Africa, and Mongolia.
With the rapid development of the new energy and new materials industries, the size of the fluorite market is expected to further expand.
