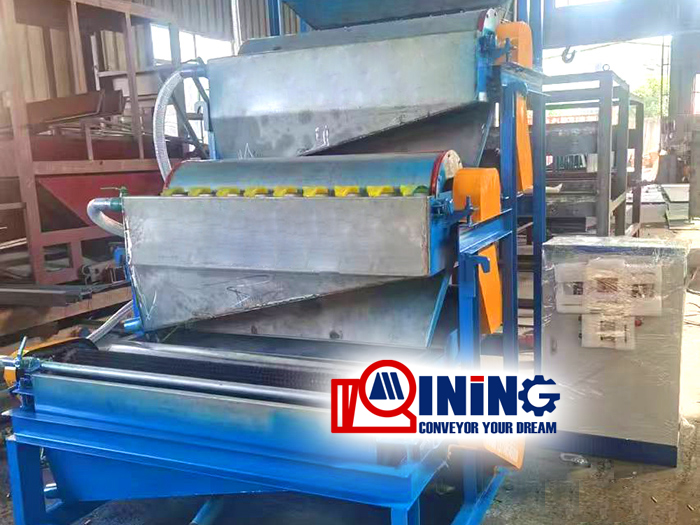

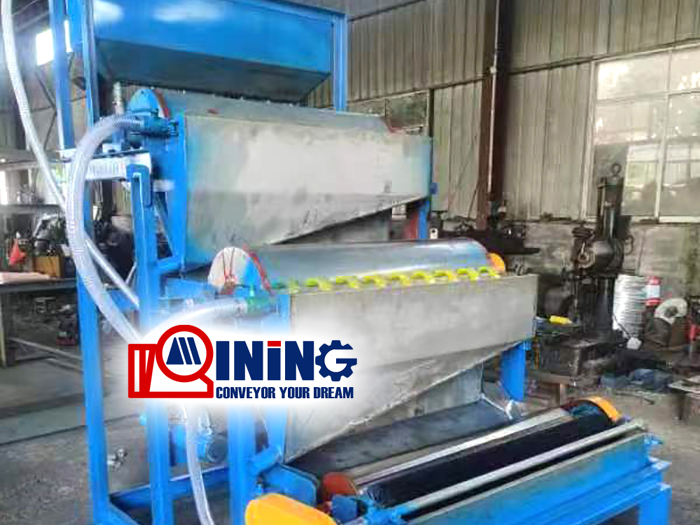

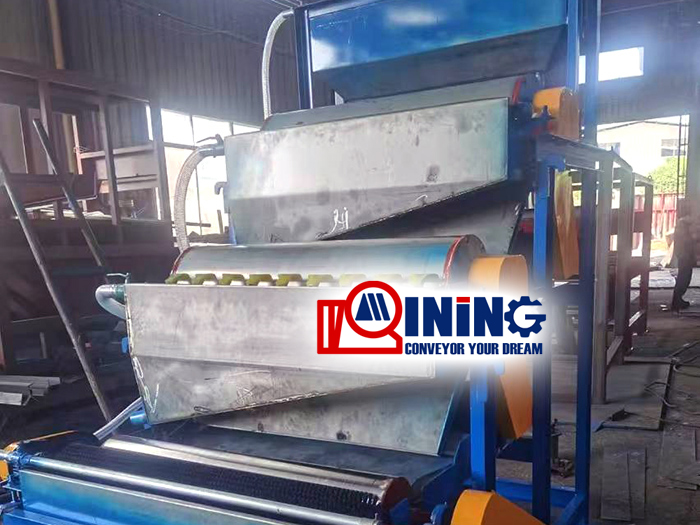

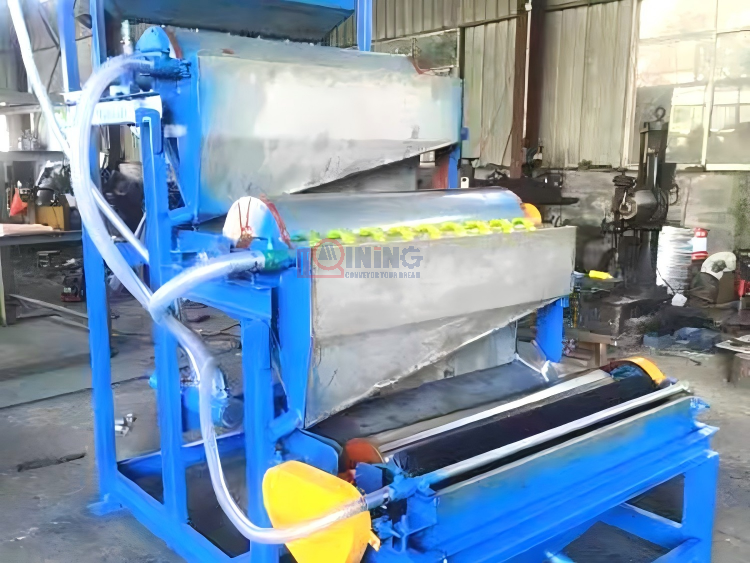

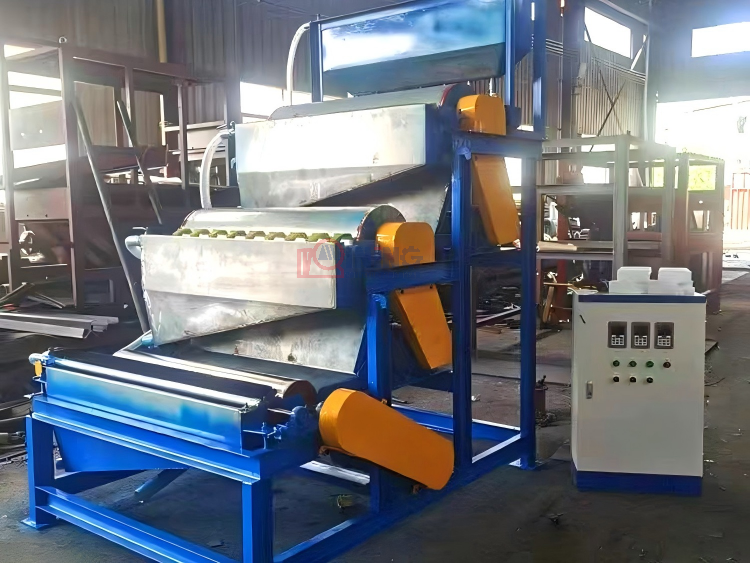

High Intensity Permanent magnetic separator
China High Intensity Permanent magnetic separator for titanium ilmenite zircon
Permanent magnetic separator,also called Permanent magnetic drum separator,Permanent magnet drum beneficiation machine,The magnetic field source is composed of high-performance permanent magnetic materials. It has the advantages of light weight, high output, low energy consumption, stable performance, easy operation, and wide applicability.
This machine is used for magnetic separation and recovery of rare earth ores. It can fully recover and utilize the rare earth tailings that cannot be recovered by disc magnetic separators and shaking tables, with a recovery rate of over 95%; Used for magnetic separation of titanium concentrate, it can achieve the purpose of magnetic separation in one go.
Permanent magnetic separator Structure and Working Principle
The machine consists of a frame, a magnetic drum, a hopper, a feeding device, a transmission belt, a non-magnetic feeding device, a continuously variable speed motor, and other components.
Due to the different magnetic induction forces experienced by magnetic and non-magnetic minerals passing through the magnetic drum, they fall into two different ore receiving tanks, thus achieving the purpose of mineral sorting.
Permanent magnetic separator Application
Used for magnetic separation of titanium concentrate, it can achieve the purpose of magnetic separation in one go. Each ton of titanium concentrate processed by magnetic separation only consumes about 0.4 kwh of electricity, improving the ore grade.
Permanent magnetic separator in titanium
Used for magnetic separation of titanium concentrate, it can achieve the purpose of magnetic separation in one go. Each ton of titanium concentrate processed by magnetic separation only consumes about 0.4 kwh of electricity, improving the ore grade.
Parameter of the High Intensity Permanent magnetic separator
| Specifications | Unit | Model | ||
| Ø380×880 | Ø380×1000 | Ø380×1200 | ||
| Magnetic intensity | MT | 1000～1480 | 1000～1480 | 1000～1480 |
| Power | Kw | 0.75～1.1 | 0.75～1.1 | 0.75～1.1 |
| Roller speed | r/min | 0～150 | 0～150 | 0～150 |
| Feeding size | mm | 0.1～3 | 0.1～3 | 0.1～3 |
| Capacity | t/h | 1.5～2.5 | 2～3 | 2.5～4 |
| Weight | Kg | 480 | 680 | 790 |
Installation, operation, and use of Permanent magnetic separator
1. During installation, a comprehensive inspection of the machine should be conducted.
2. Place the machine horizontally and firmly.
3. The body is grounded as usual.
4. Adjust the drive drum to a parallel position. Make the transmission operate normally.
5. Adjusting the feeding angle can control the output size.
6. Adjust the operating speed of the magnetic drum or feed size according to the properties and sorting of minerals.
7. The angle of the dividing plate of the rotating feeding device can adjust the grade and recovery rate of the concentrate.
8. The direction of operation of the magnetic drum is consistent with the direction indicated by the arrow.
