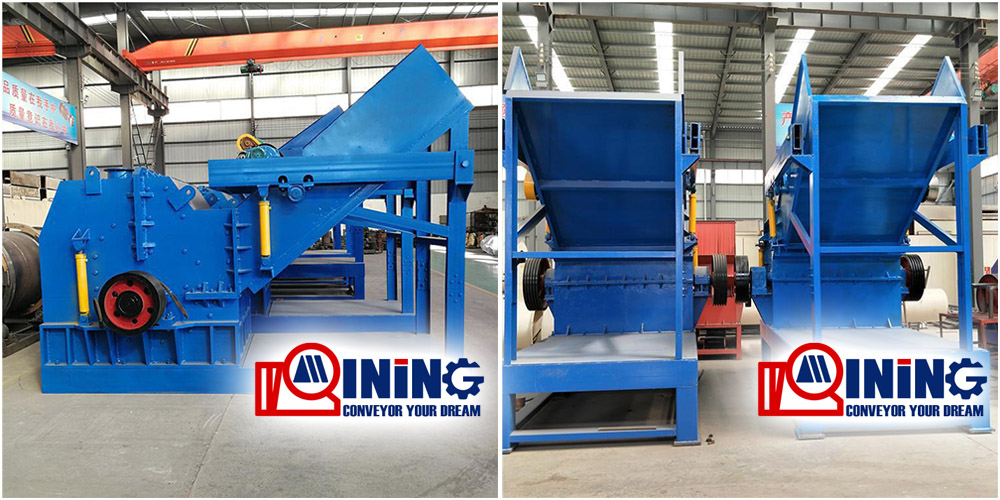

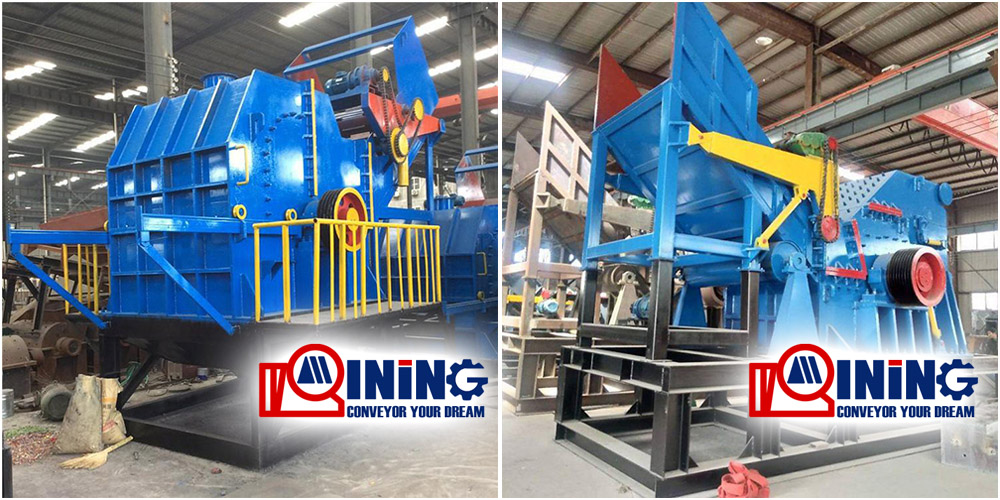

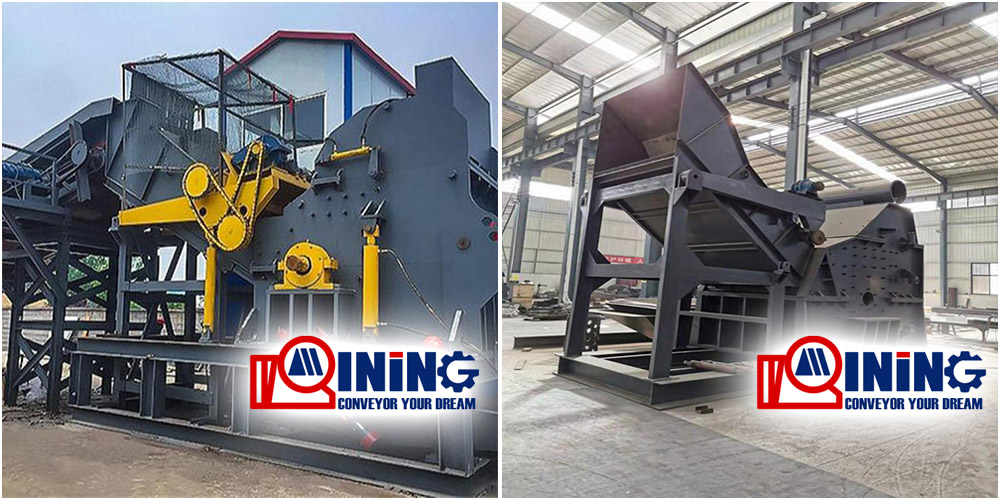

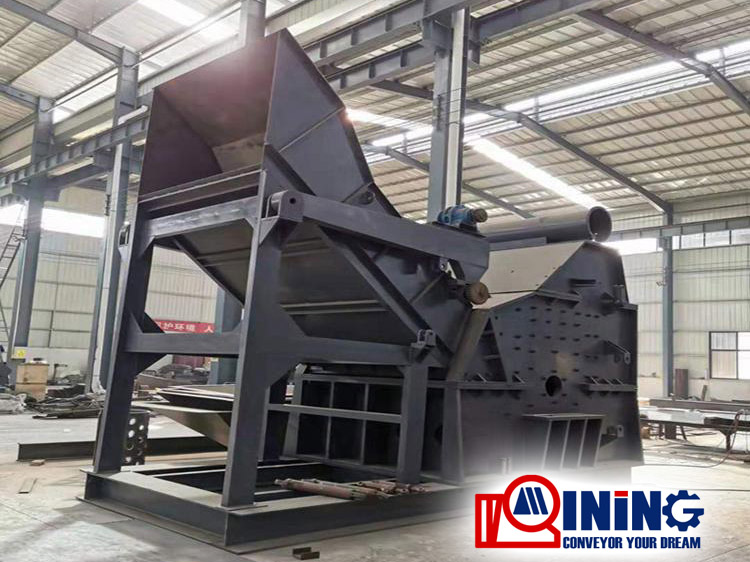

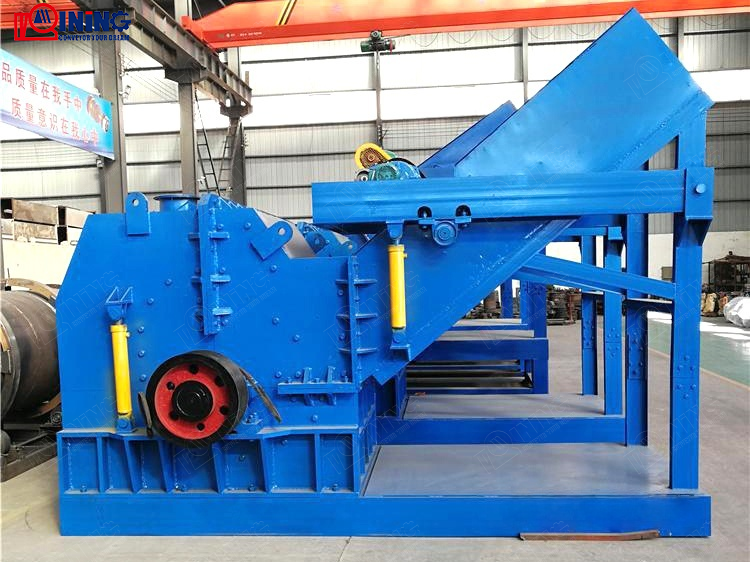

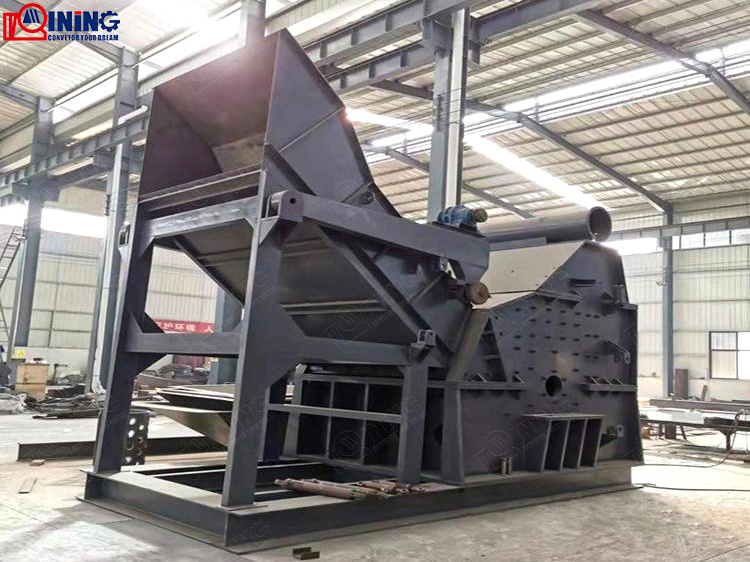

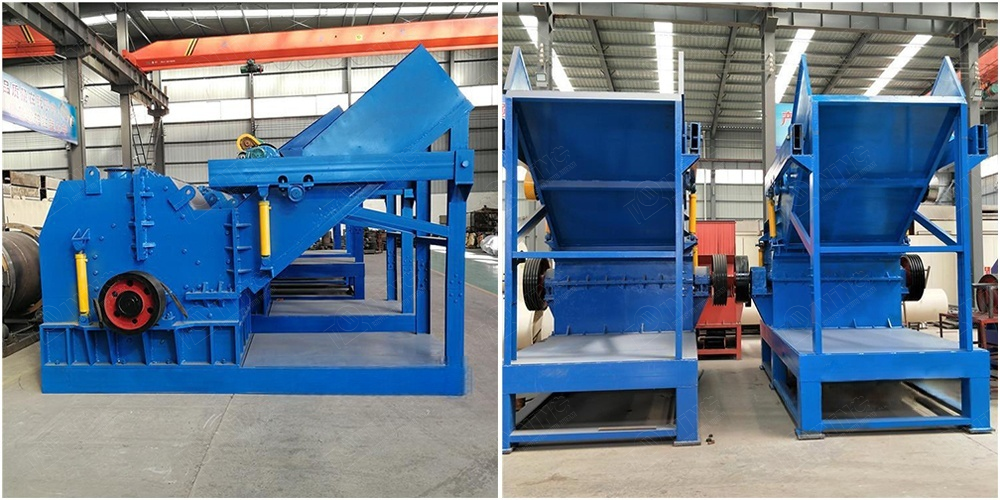

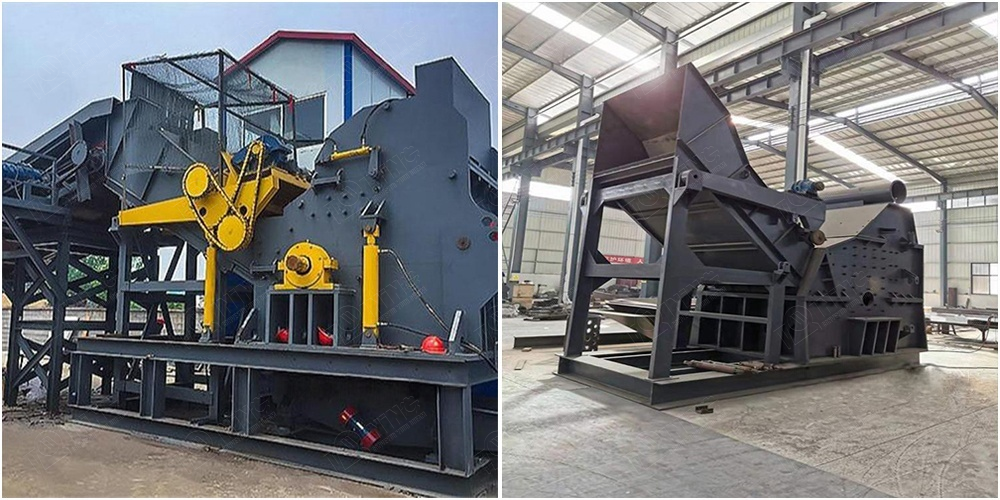

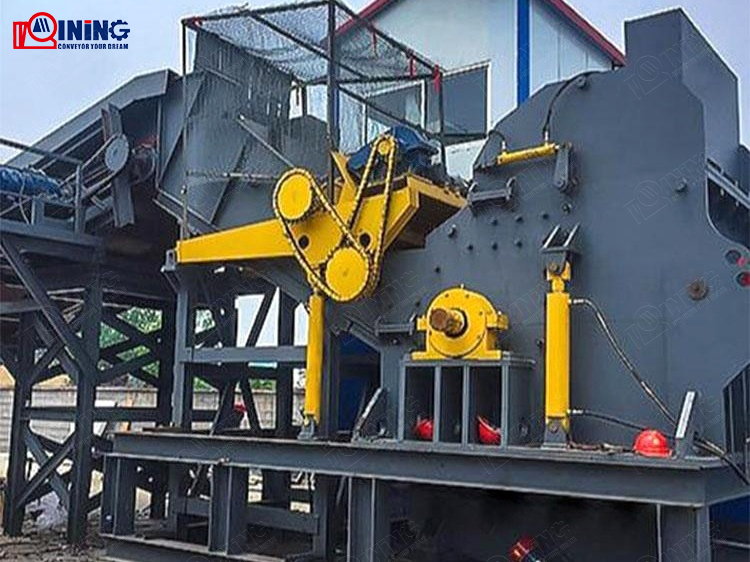

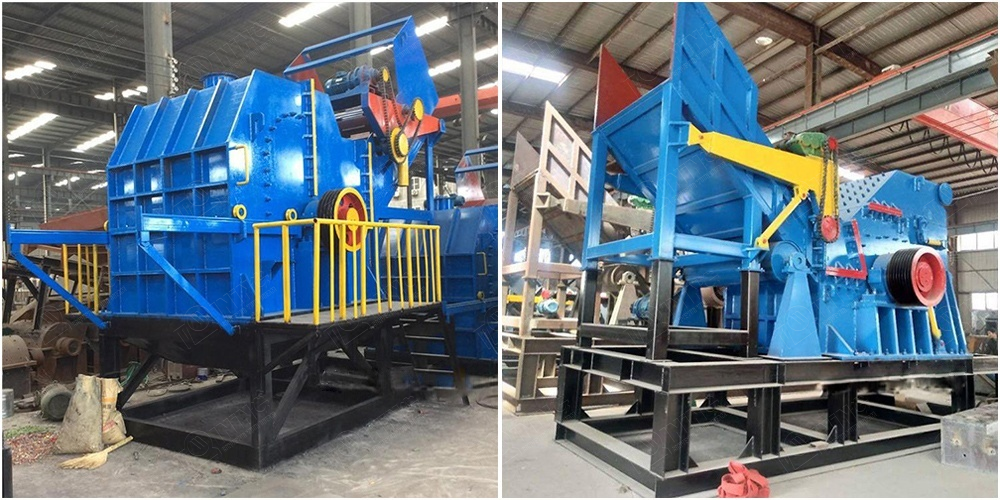

Metal crusher crushing machine
China metal crusher, used scrap steel hammer crusher machine factory
Metal crusher video
Metal shredder video
Scrap metal before and after crusher
Working principle of Metal steel scrap crusher
The crushing production line uses the principle of hammering. Driven by the high-speed and high torque motor, the hammers on the rotor of the main machine strike the materials to be broken in turn and enter into the chamber. Through the space formed between the lining plate and the hammerhead, the materials to be broken are torn into the qualified materials. Then under the action of the magnetic equipment, the materials with high purity can be obtained.
Application of Metal steel scrap crusher
1. Metal steel , metal aluminum , scrap metal , waste car body (excluding engine, gearbox, tire, etc.);
2. Tinplate (can, etc.)
3. Iron sheet for household electrical appliances (excluding motors, compressors, shafts, etc.)
4. Light and thin materials and similar domestic wastes
5. Empty tank (wash out thinner, paint, etc.), unsealed tank.
Note: after preliminary processing, the shape and volume of all the processed materials should be able to enter the main machine feed port smoothly（ For example, pop can, small paint bucket, color steel tile, car shell, etc.)
Not suitable:Dangerous goods:
a. Sealed containers, conduits, etc;
b. Articles that may cause explosion, fire, etc;
a. Subject other than passenger car;
b. Engine, converter, differential gear, tire;
Parameter of the Metal crusher crushing machine
| Main machine - metal crusher | ||||||
| Model | 800 | 1000 | 1300 | 1600 | 1800 | 2000 |
| Power | 37-45kw | 55-75kw | 75-90kw*2 | 110-132kw*2 | 132-220kw*2 | 220kw*2 |
| Capacity（t/h） | 0.9-1.1 | 1.5-2 | 2-4 | 4-6 | 6-10 | 10-14 |
| Dimension（mm） | 2600*1800*2600 | 2800*1900*3000 | 3300*2000*3500 | 3600*2300*3800 | 3800*2600*4000 | 4000*3200*4200 |
| Pannel electric | include | include | include | include | include | include |
| Feed conveyor - convey metal into metal crusher | ||||||
| Feed conveyor belt | 0.6m*6m | 0.8m*8m | 1.2m*10m | 1.5m*12m | 1.6m*12m | 1.8m*12m |
| Power | 3kw | 5.5kw | 7.5kw | 11kw | 11kw | 11kw |
| Output conveyor - convey crushed metal | ||||||
| output conveyor belt | 0.6m*4m | 0.6m*6m | 0.6m*6m 2sets | 0.6m*6m 2sets | 0.8m*6m 2sets | 0.8m*6m 2sets |
| Power | 3kw | 3kw | 3kw*2 | 3kw*2 | 3kw*2 | 3kw*2 |
| Separate and convey crushed magnetic metal(includeing megtic) | ||||||
| sort & conveyor | 0.6m*4m | 0.6m*6m | 0.6m*6m | 0.6m*6m | 0.6m*6m | 0.6m*6m |
| power | 3kw | 3kw | 3kw | 3kw | 3kw | 3kw |
| Dust removal system - protect the environment | ||||||
| Dust removal system | Fan | Fan | Fan | Fan / Pulse | Fan / Pulse | Fan / Pulse |
Introduction to Metal steel scrap crusher
1. Include the following equipment scope content:
(1) Feeding conveyor: 1 set
(2) Main machine of crusher line: 1 set
(3) Discharge belt conveyor: 1 set
(4) Non-magnetic discharge belt conveyor: 1 set
(5) Belt conveyor for metal material discharge: 1 set
2. Including the following supporting systems
(1) Control of power distribution cabinet
(2) Hydraulic system
(3) Expected discharge system
