Plastic baler
China plastic baler,can plastic bottle briquette machine- Henanmining
Plastic ,paper, metal, cans solide waste after baling machine

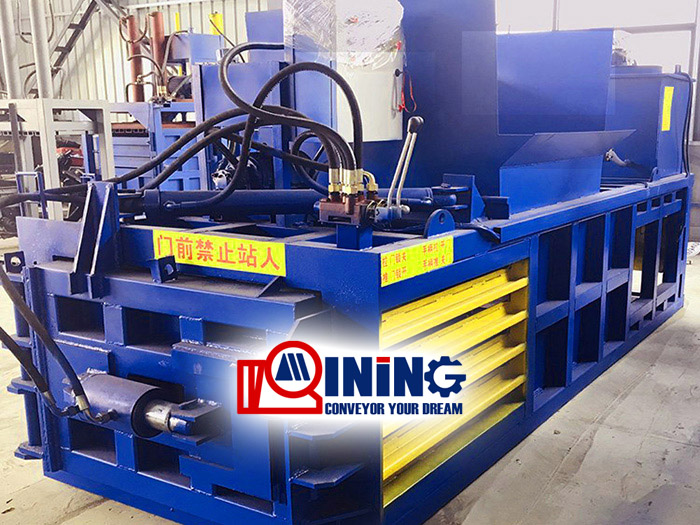

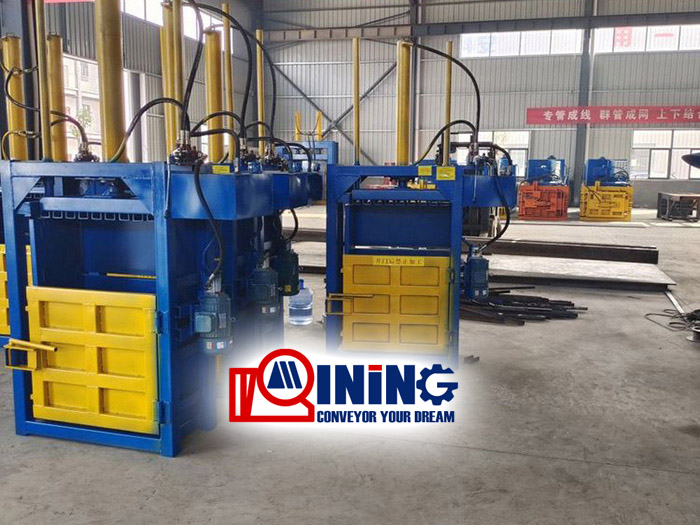

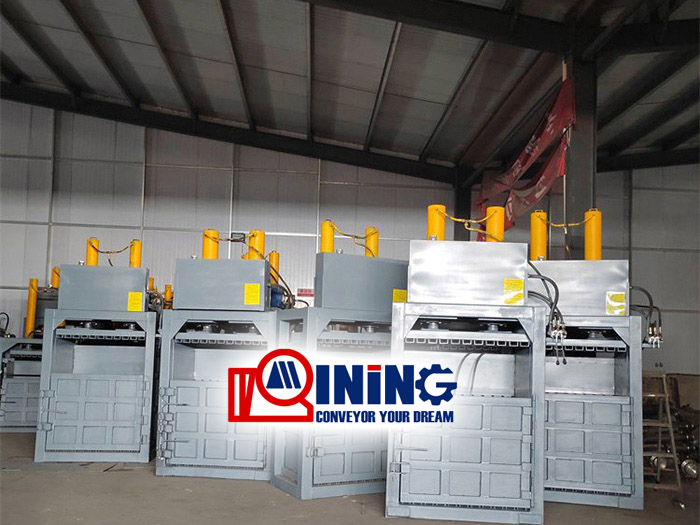

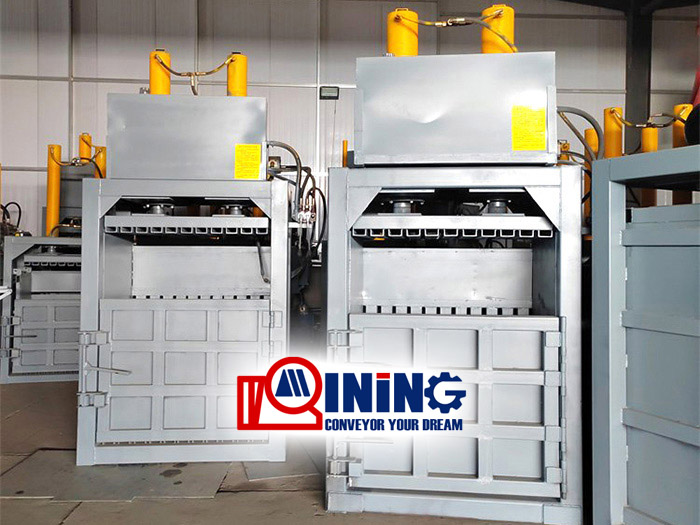

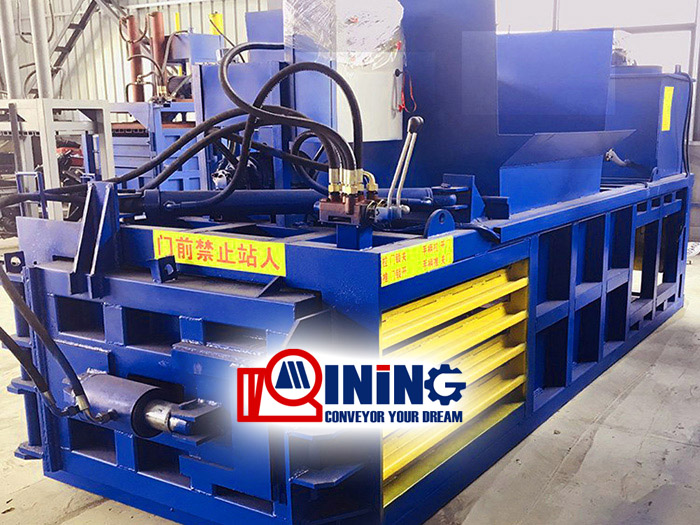

Plastic baling machine
Plastic baling machine also called baler, briquette machine, package machine etc. It has advantages of high efficiency, low noise, energy saving and environmental protection.The pressure range ranges from 8 tons to 300 tons, ranging from 20 levels, supports customization
8 - 100 ton pressure with vertical type; 80 - 300 ton pressure with horizontal type

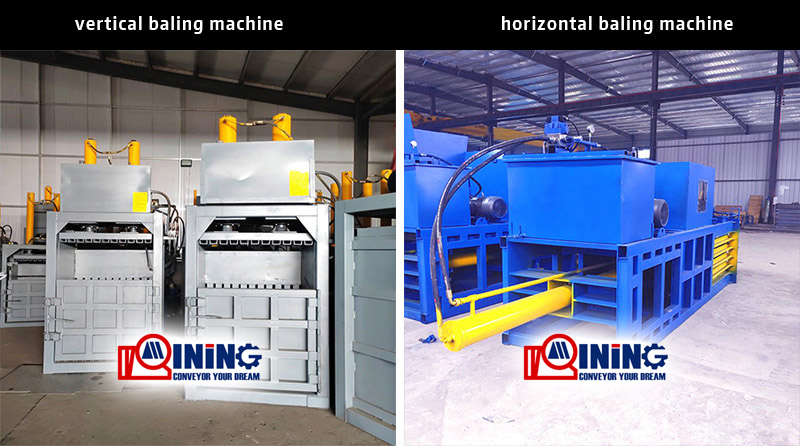

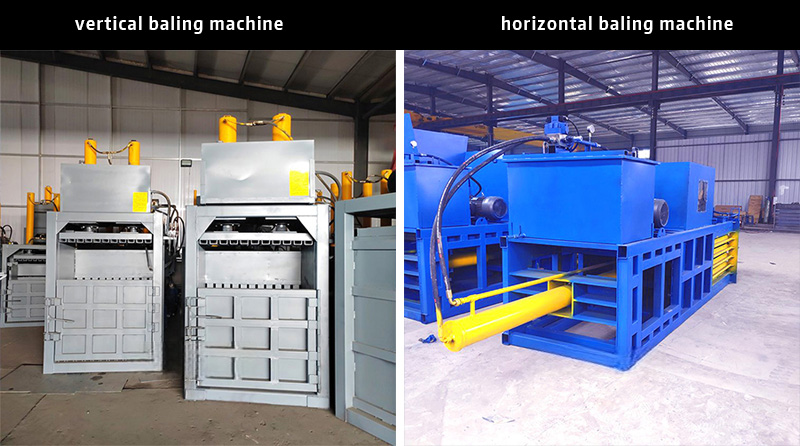

Two types plastic baling machine
Application
Used for packing all kinds of waste plastics: plastic bottles, PET bottles, turnover boxes, plastic films, cartons, straws, and briquetting of light metal cans, oil drums, etc.

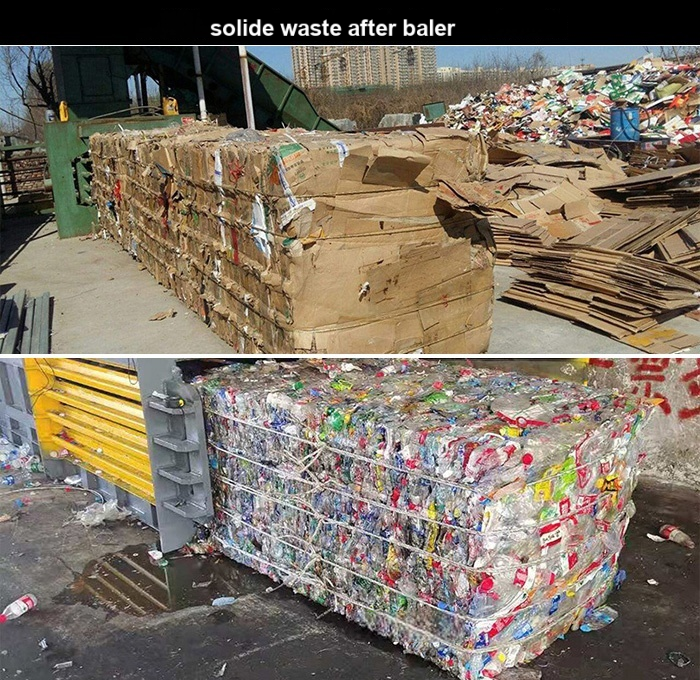

plastic ,paper solide waste after baling machine
Structure

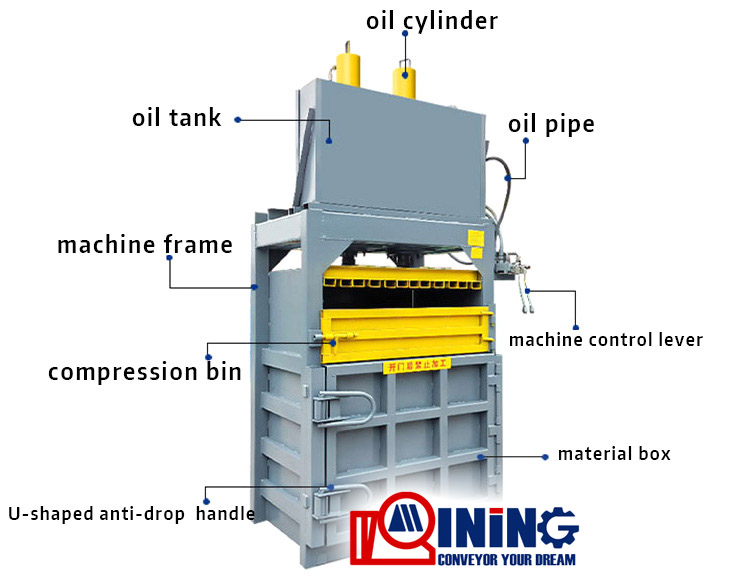

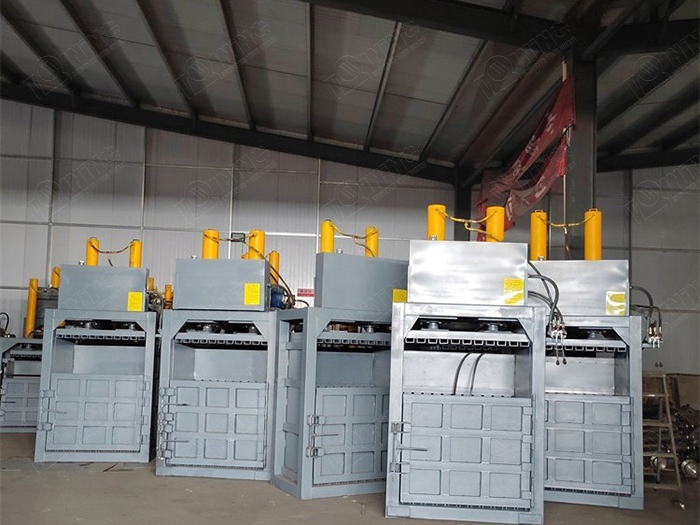

Vertical type structure

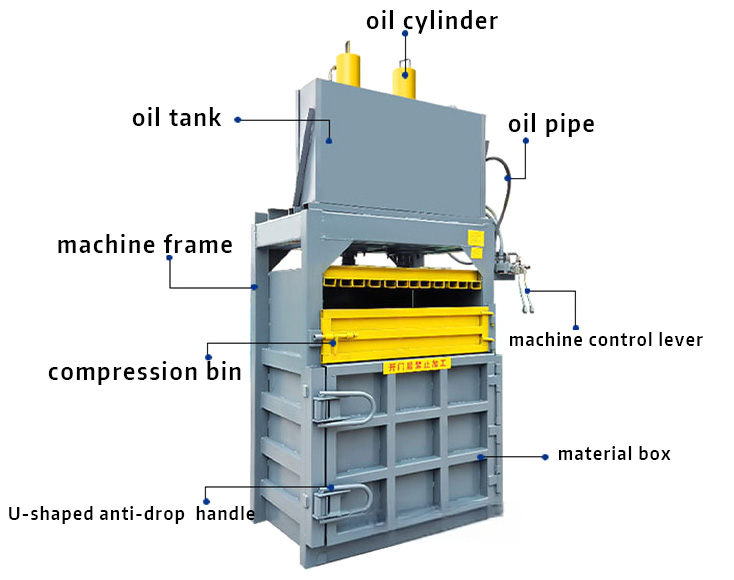

Vertical baler consists of oil cylinder, oil tank, oil pipe, machine frame, compression bin, U-shaped anti-drop handle, machine control lever, material box, etc.

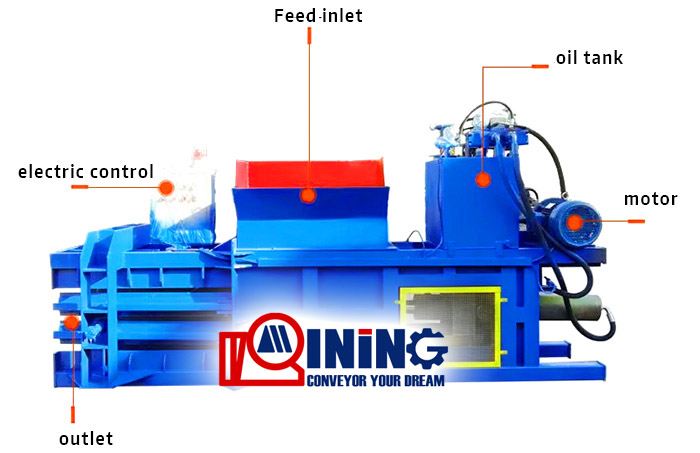

horizontal type structure

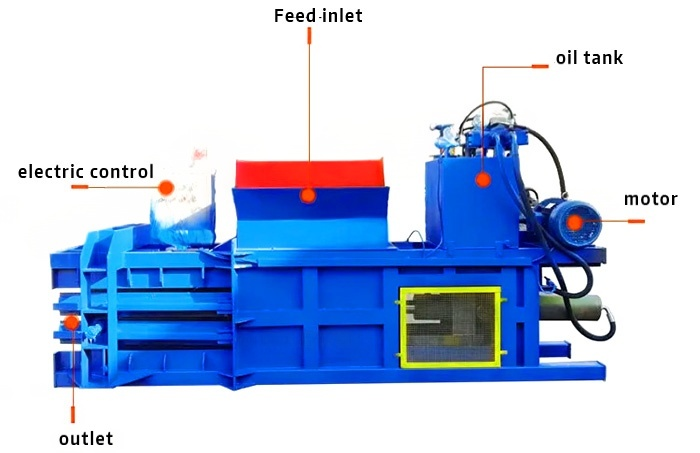

Horizontal baling machine consists of Outlet, fuel tank, electric control, inlet, motor etc
Parameter of the Plastic baler
Vertical baler parameter
| Vertical | Power(kw) | Pressure | Block Dimension(mm) | Bar type | Dimension(mm) | Block number |
| 8 ton | 4 | 8 ton | 600*400*600 | single bar | 1250*650*2150 | 4 - 6 blocks per hour |
| 10 ton | 7.5 | 10ton | 800*400*800 | single bar | 1450*650*2600 | |
| 20 ton | 7.5 | 20ton | 800*400*800 | single bar | 1450*650*2700 | |
| 30 ton | 11 | 30ton | 1000*600*800 | single bar | 1650*850*2750 | |
| 30 ton | 11 | 30ton | 1000*600*800 | double bar | 1650*850*2700 | |
| 40 ton | 11 | 40ton | 1000*600*800 | double bar | 1650*850*2750 | |
| 60 ton | 15 | 60ton | 1200*800*1000 | double bar | 1600*2100*3100 | |
| 80 ton | 18.5 | 80ton | 1200*800*1000 | double bar | 1700*2100*3300 | |
| 100 ton | 22 | 100ton | 1200*800*1000 | double bar | 1700*2100*3900 | |
| 120 ton | 22 | 120ton | 1100*700 | 1400*2000*4200 |
Horizontal baler parameter
| Horizontal | Power(kw) | Pressure | Oil Cylinder | Block Dimension(mm) | Block weight | Over all Dimension(mm) |
| 80ton | 18.5 | 80 ton | 185 | 1200*1100*850 | 300-400 | 6000*1100*2300 |
| 100ton | 18.5 | 100 ton | 200 | 1200*1100*850 | 400-500 | 6000*1100*2300 |
| 120ton | 22 | 120 ton | 230 | 1400*1100*850 | 600-700 | 6700*1300*2300 |
| 140ton | 22 | 140 ton | 250 | 1400*1100*850 | 700-800 | 6700*1300*2300 |
| 160ton | 37 | 160 ton | 300 | 1800*1100*1250 | 1000-1300 | 9200*1300*3100 |
| 180ton | 37 | 180 ton | 325 | 1800*1100*1250 | 1100-1300 | 9400*1500*3100 |
| 200ton | 45 | 200 ton | 360 | 1800*1100*1250 | 1100-1300 | 9400*1500*4300 |

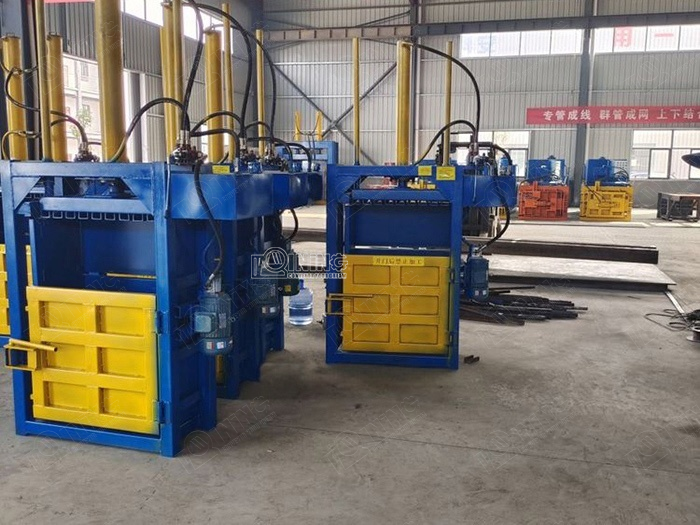

Features of vertical plastic baling machine
High pressure plunger pump
The inlet and outlet parts of the pump are made of cast iron, the pump body is non-corrosive and anti-wear hydraulic oily medium.
Hydraulic power double-teaming
There is a hydraulic power clamp on each side of the outlet, which is powerful enough to easily adjust the size of the outlet according to different materials.
Automatic stacking of packages:
Automatic stacking of packages, package turning supports customization
Preferred material, thickened steel plate is wear-resistant and durable

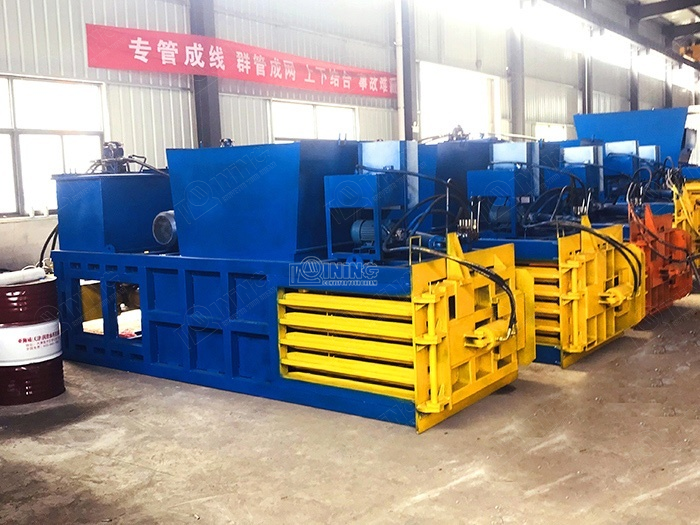

Features of Horizontal plastic baling machine
Feeding port: The feeding port is widened and enlarged, and the material can be filled at one time, which is convenient and fast.
Remote distribution box: convenient and fast, two control methods, handle control is safer and more convenient
High-quality reinforced frame: no deformation after long-term use, high superposition strength of frame warp and weft, no welding
Thickened fuselage, the whole machine is made of high-quality steel, thickened steel plate, strong process pressure, sturdy and durable
