Topsoil screen trommel
Portable topsoil screen gravel trommel manufacturer China
Topsoil screener mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet.
The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis.
After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.

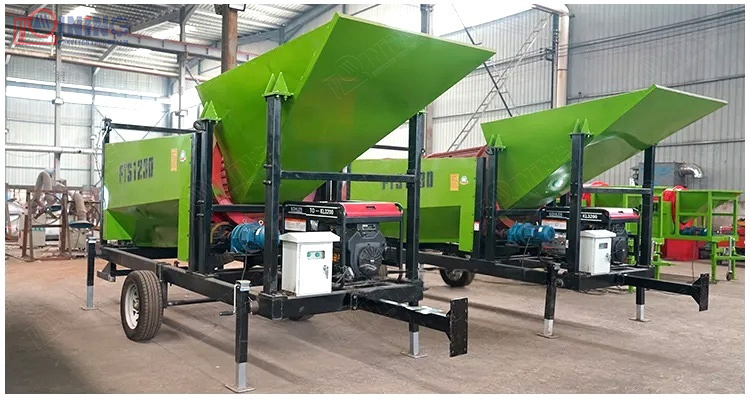

Structure

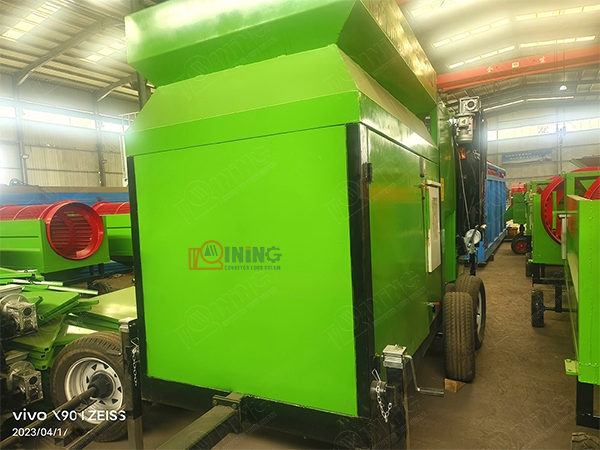

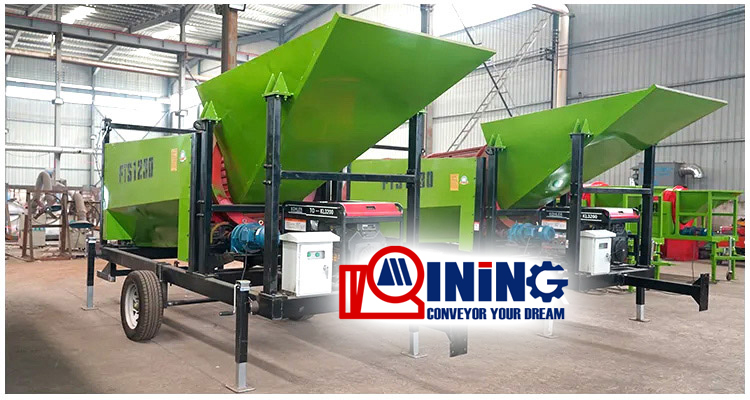

Trailer towing : it helps the whole machine to move easily.
Machine guard: it avoids collisions and deformation.
Electric control cabinet : it regulates speed, and sets the control switches of each part at the same time.

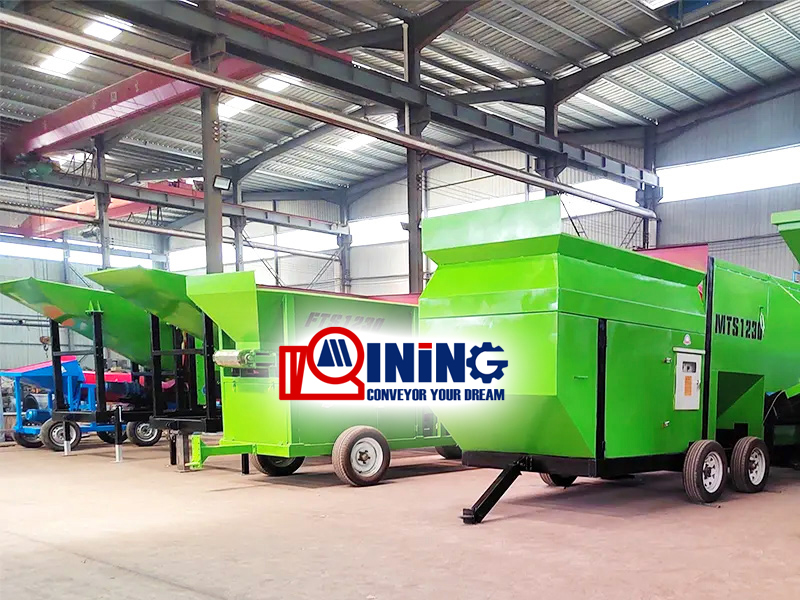

Feed hopper: feed raw materials into hopper.
Tire: it facilitates machine movement.
Application
It is used for sorting and screening all kinds of soil, clay, topsoil, compost , garbage ,building waste, sand gravel etc,
Parameter of the Topsoil screen trommel
| Model | Drum size(m) | Drum inclination | Drum speed | Mesh size(mm) | Max feeding size(mm) | capacity(m³/h) | Motor power |
| (°) | (r/min) | (kw) | |||||
| GTS820 | Φ0.8x2 | 6-10 | 32 | 2 - 20 | Mesh sizex2.5 | 7-30 | 3 |
| GTS830 | Φ0.8x3 | 6-10 | 32 | 2 - 20 | Mesh sizex2.5 | 8-50 | 3 |
| GTS1020 | Φ1x2 | 6-10 | 25 | 2 - 20 | Mesh sizex2.5 | 10-60 | 4 |
| GTS1030 | Φ1x3 | 6-10 | 25 | 2 - 20 | Mesh sizex2.5 | 11-80 | 4 |
| GTS1230 | Φ1.2x2 | 6-10 | 20 | 2 - 20 | Mesh sizex2.5 | 12-100 | 5.5 |
| GTS1240 | Φ1.2x4 | 6-10 | 20 | 2 - 20 | Mesh sizex2.5 | 14-120 | 5.5 |
| GTS1530 | Φ1.5x3 | 6-10 | 17 | 2 - 20 | Mesh sizex2.5 | 16-120 | 5.5 |
| GTS1540 | Φ1.5x4 | 6-10 | 17 | 2 - 20 | Mesh sizex2.5 | 18-150 | 7.5 |
| GTS1550 | Φ1.5x5 | 6-10 | 17 | 2 - 20 | Mesh sizex2.5 | 20-180 | 11 |
| GTS1560 | Φ1.5x6 | 6-10 | 17 | 2 - 20 | Mesh sizex2.5 | 22-200 | 11 |
| GTS1850 | Φ1.8x5 | 6-10 | 14 | 2 - 20 | Mesh sizex2.5 | 24-220 | 15 |
| GTS1860 | Φ1.8x6 | 6-10 | 14 | 2 - 20 | Mesh sizex2.5 | 26-240 | 15 |
| GTS2050 | Φ2x5 | 6-10 | 12 | 2 - 20 | Mesh sizex2.5 | 50-600 | 22 |
| GTS2080 | Φ2x8 | 6-10 | 12 | 2 - 20 | Mesh sizex2.5 | 80-700 | 22 |
| GTS2260 | Φ2.2x6 | 6-10 | 10 | 2 - 20 | Mesh sizex2.5 | 100-800 | 30 |
| GTS2280 | Φ2.2x8 | 6-10 | 10 | 2 - 20 | Mesh sizex2.5 | 120-850 | 30 |
Features

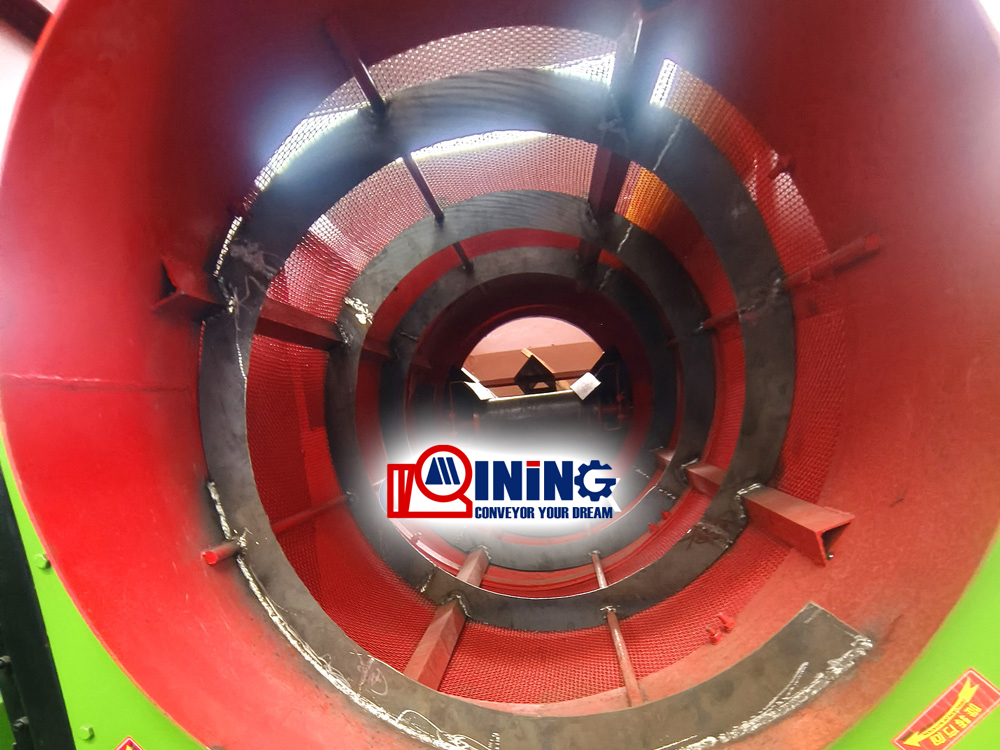

1. Trommel Screen Mesh Material
2. Bearing and Bearing box
3. The Spindle is made of oil drilling rod material
4. The hub is made of thicken flat steel.
5. Motor and Reducer
6. The machine frame using national standard channel steel or square steel.

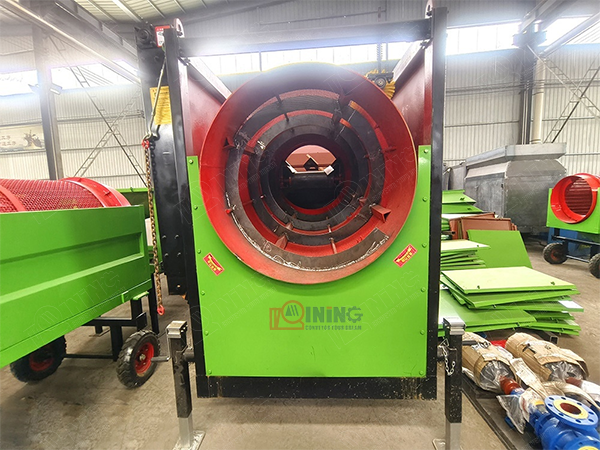

7. Inlet and outlet Design

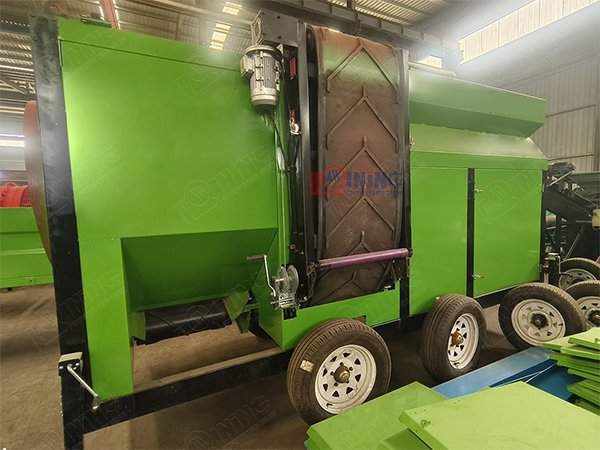

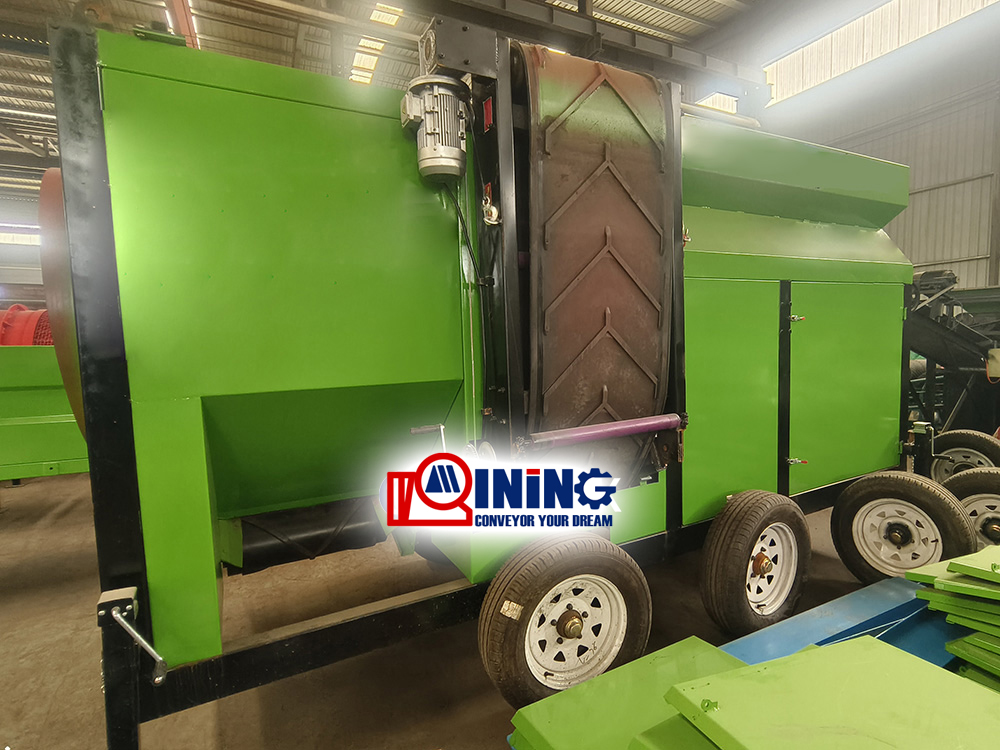

8. Can be installed belt conveyor for undersize material all-in-one machine, conveying height can be up to 4.5 meters to 6 meters, which convenient for loading and move, will save space and save your installation cost.
9. The trommel screen can be equipped with remote control device.
10. Can be equipped with pumps for cleaning materials.
11. Can be equipped with diesel engine for non-electric users.
12. Can be equipped with cleaning screen mesh device to prevent the block problem of below 3mm mesh.

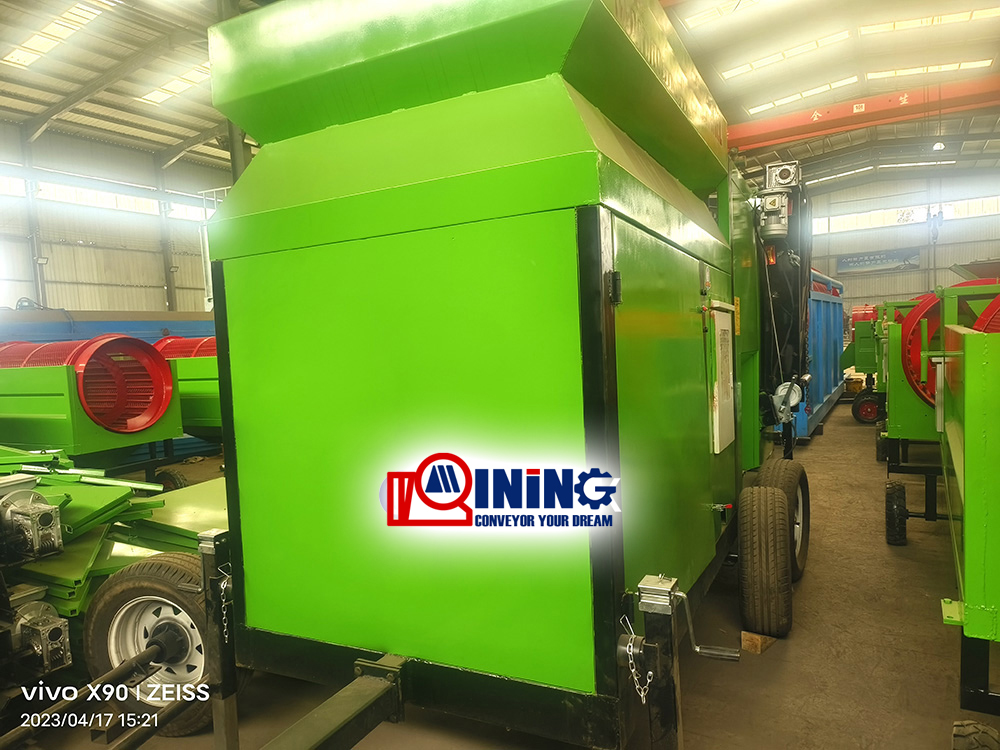

13. Can be installed heavy hopper for different loader (16, 20, 30,50 model) feeding.

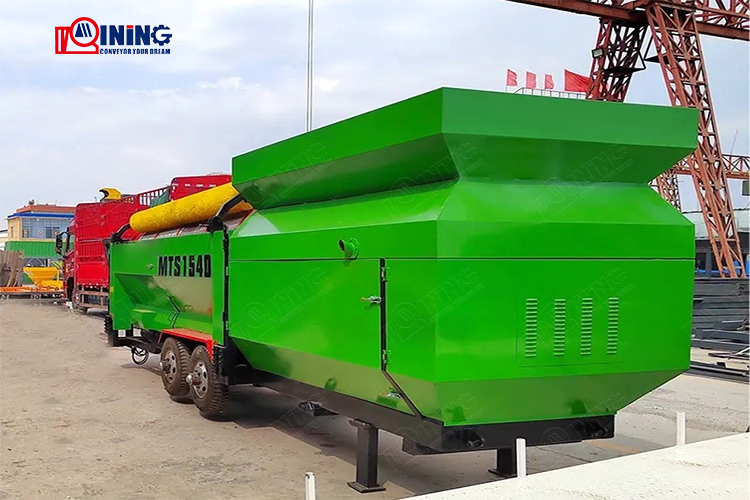

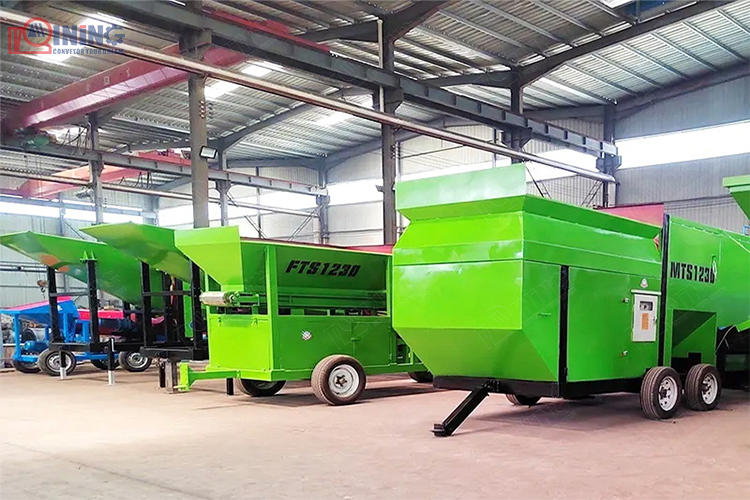

14. Can be installed tyre easy to move.
15. Can be equipped with adjustable-speed motor or variable frequency motor used to adjust the trommel rotate speed to meet requirements of customers for different materials screening. Trommel screen rotate speed is 16-18r/min, maximum must < 30r/min or it will form centrifugal force.
16. In a word, one customer one request and the trommel screen will be different.
