Garbage Waste recycling screen trommel
Garbage Waste screen trommel China green waste sorting machine
Structure features

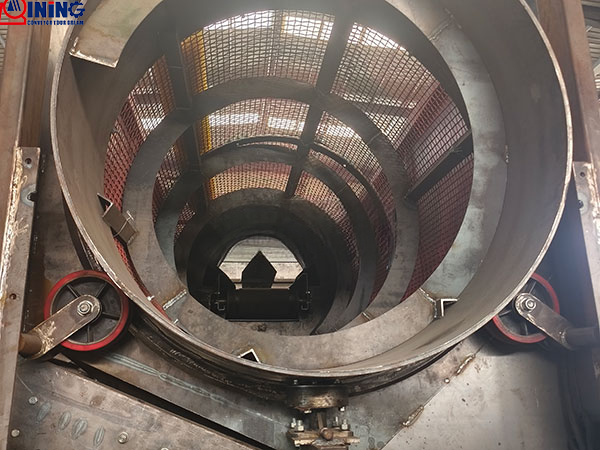

1.The drum is made of high-quality steel plate, and the rotating part is a thick-walled rolling ring, which is machined by special equipment, and its shape tolerance and operating conditions can guarantee the use function.
2.The rotating body rotates smoothly, the speed is stable, the noise is low, the gears mesh well, the feeding and unloading devices work well, and there is no material leakage and drop.
3.The connection is firm, and the welding gap is even and smooth.

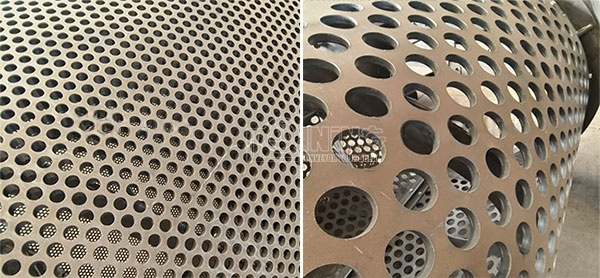

4.The sieve plate is made of high-quality structural steel plate with a thickness of 10mm, and the aperture can be adjusted according to the material condition and process requirements.
5.The framework adopts the overall welded structure of section steel, and the connection between the sieve plate and the drum framework adopts a bolt connection structure, which has the advantages of long life and good rigidity.
Application
It is suitable for sorting and screening all kinds of solid garbage such as construction waste, aged garbage, household waste, and decoration garbage etc.
separate screen customized support
Parameter of the Garbage Waste recycling screen trommel
| Model |
Capacity (t/h) |
Power (kw) |
Diameter (mm) |
Length (mm) |
Discharge (mm) |
Input (mm) |
Dimension (mm) |
| GTS1015 | 50 | 3 | 1000 | 1500 | 0-100 | ≤300 | 2600×1400×1700 |
| GTS1020 | 100 | 4 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| GTS1225 | 160 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| GTS1530 | 250 | 7.5 | 1500 | 3000 | 0-100 | ≤300 | 4460×1900×2820 |
| GTS1545 | 350 | 11 | 1500 | 4500 | 0-100 | ≤400 | 5960×1900×3080 |
| GTS1848 | 450 | 15 | 1800 | 4800 | 0-100 | ≤400 | 6500×2350×4000 |
| GTS2055 | 600 | 22 | 2000 | 5500 | 0-100 | ≤400 | 7500×2550×4800 |
| GTS2265 | 800 | 30 | 2200 | 6500 | 0-100 | ≤400 | 8500×2750×5000 |
Where Does the Garbage Go After Sorting Most of the garbage:
Plastic: can be reprocessed by plastic pyrolysis machine to get plastic oil and carbon black, then get diesel by crude oil distillation unit; can be pelletized into plastic pellets by plastic pelletizing machine;
Metal: can be used to produce steel materials;
Organic: can get biogas from fermentation system;
Biomass wastes like straws, wood, sewage sludge, etc.: can be carbonized to get charcoals by charcoal making machine;
Brickbats and stones: can be briquetted into new bricks for construction use.
FAQ
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
