Gold leaching tank
Gold leaching tank : Agitation process mining by China
We produce all kinds of mining tank , suh as leaching tank , Mining mixing tank , High concentration mixing tank , lift mixing tank etc
Introduction:
Gold Leaching tank, also called gold agitation tank,Double impeller leaching mixing tank, gold leaching agitation tank etc.Used for： gold mining extraction in gold leaching plant.
Usage condition:
90% mining size < 200 mesh
ore pulp density ( concentration )<45%
Effective volume: 1-400 m³（cubic meter）
Related Products
Gold ore processing plant
small scale gold processing plant
Mining mixing tank
High concentration mixing tank

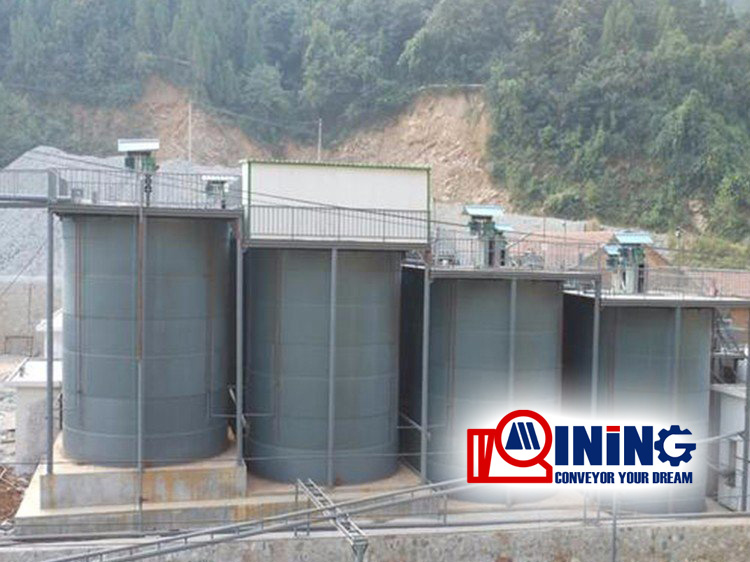

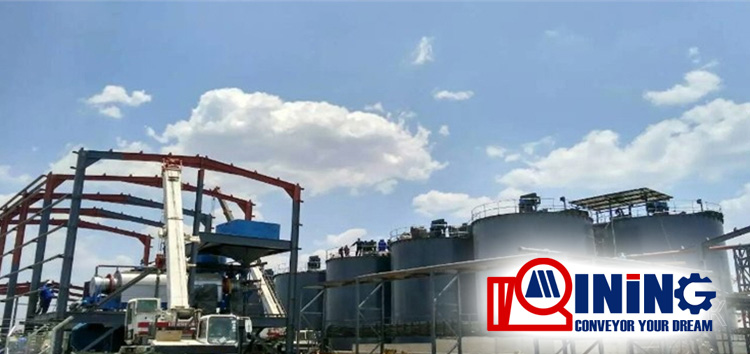

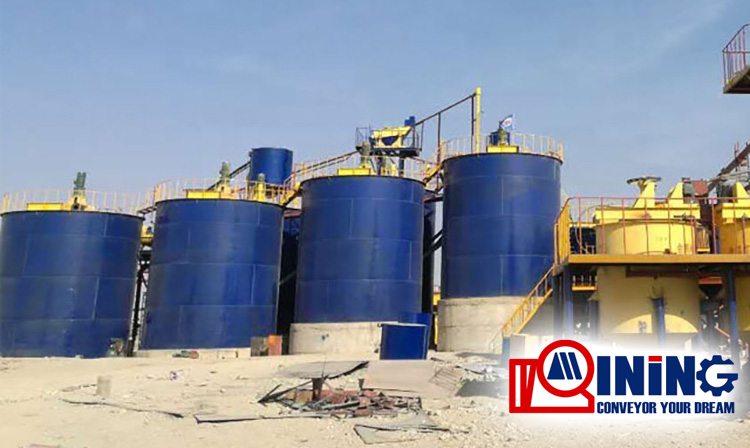

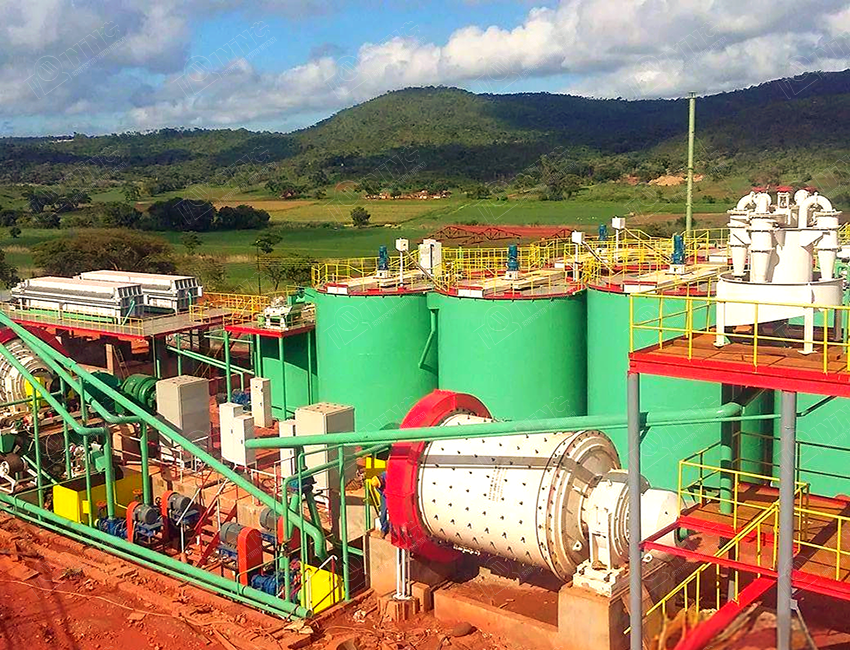

China gold leaching tank
China gold leaching tank

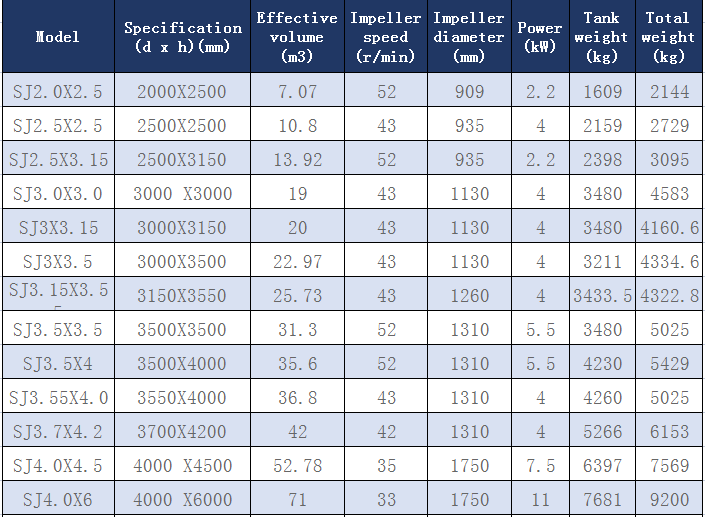

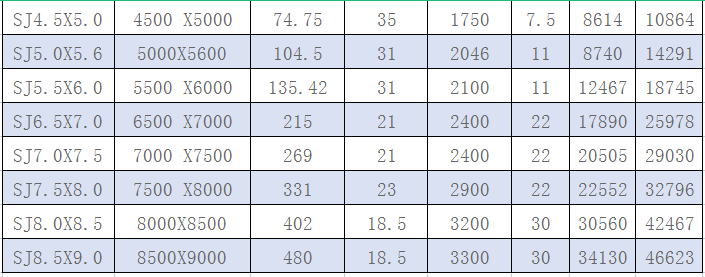

Parameter of the Gold leaching tank
Features
Double layer impeller, uniform mixing and low energy consumption;
The impeller is coated with rubber and has a long service life;
Multi-point air supply is adopted to evenly inflate;
The air enters the tank and is stirred by the blades to disperse evenly, small bubble;
The pulp concentration and fineness distribution in the tank are consistent, which can improve the leaching rate and carbon adsorption rate
Reasonable structure , convenient maintenance
