Portable hammer mill

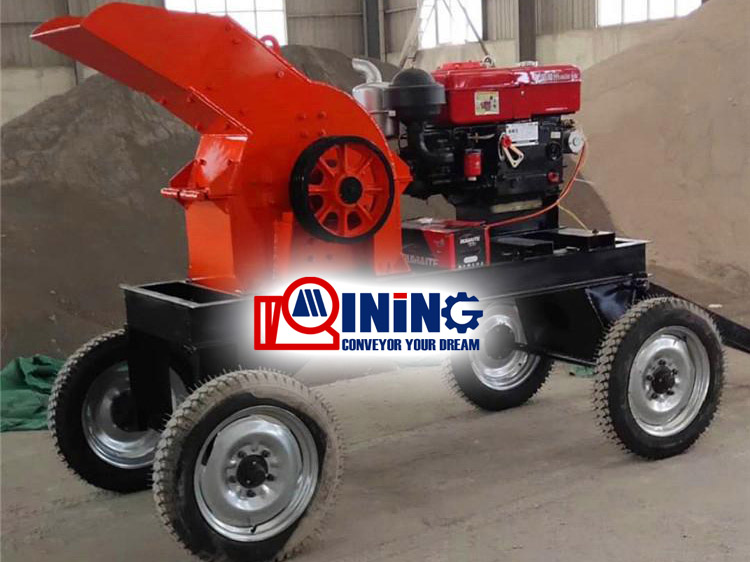

China portable diesel stone hammer mill, gold hammer crusher
Description:
Hammer crusher is the most common of stone crushing equipment. It is also called hammer mill. It has high production capacity, low energy consumption, simple structure, reliable quality, easy maintenance, etc.
Hammer mill test video:
small mobile hammer mill
Hammer mill application:
Soft hard rock and middle hard stone, such as mining, ore, gold ore, copper ore, soapstone, gypsum, calcite, fluorite, limestone, shell, glass etc

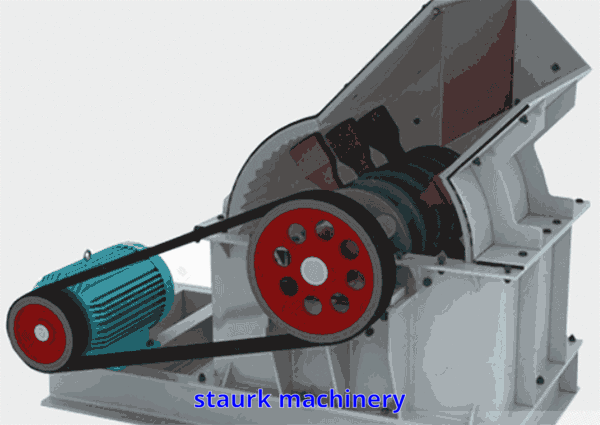

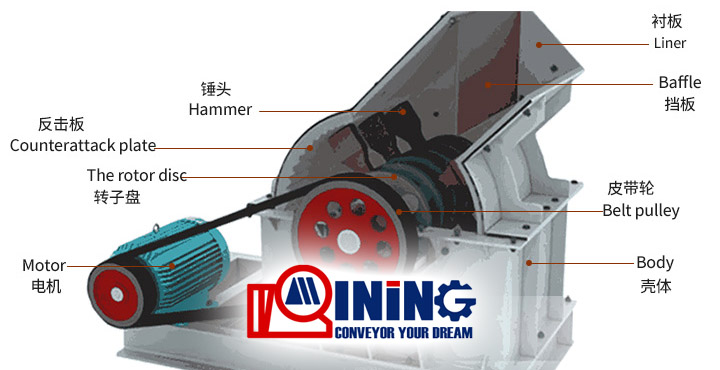

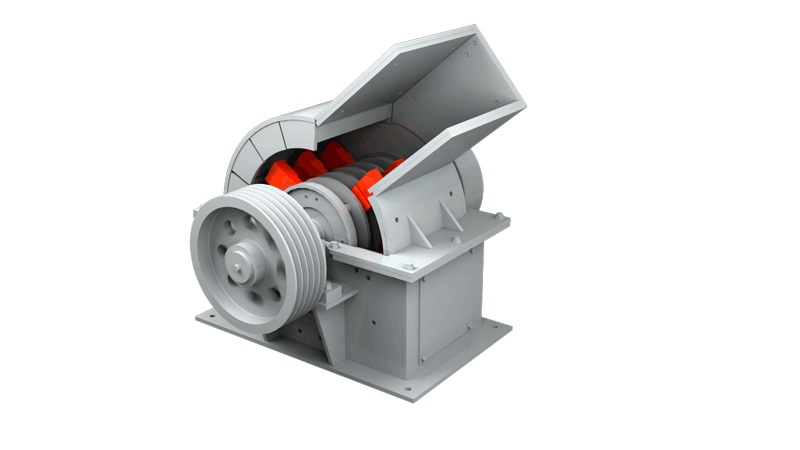

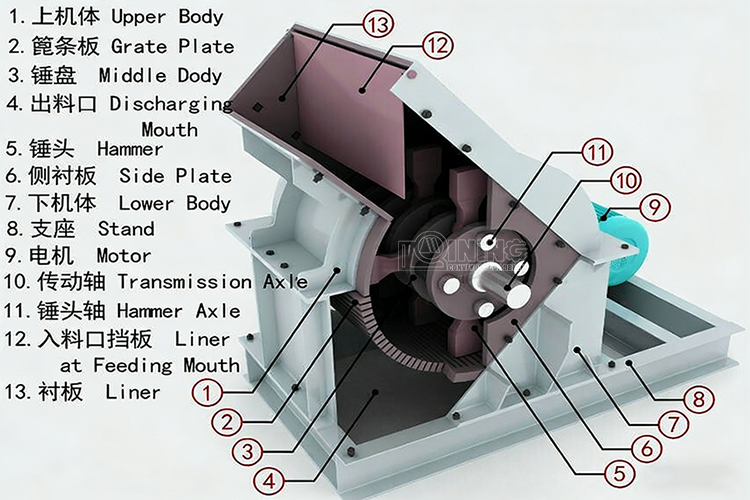

Working principle
Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assemblly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size. The size of the final product can be adjusted by changing the grate, the gap between the rotor assemblly and the grate can also be adjusted according to different requirements.

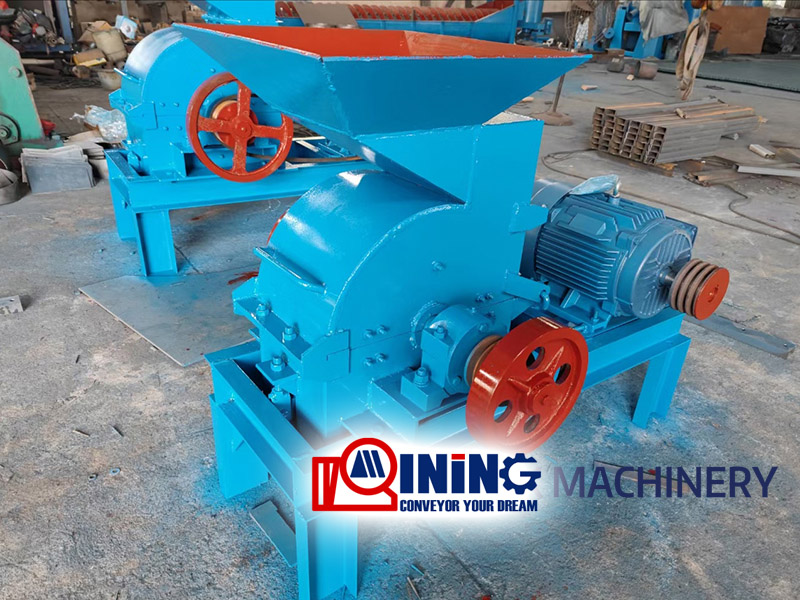

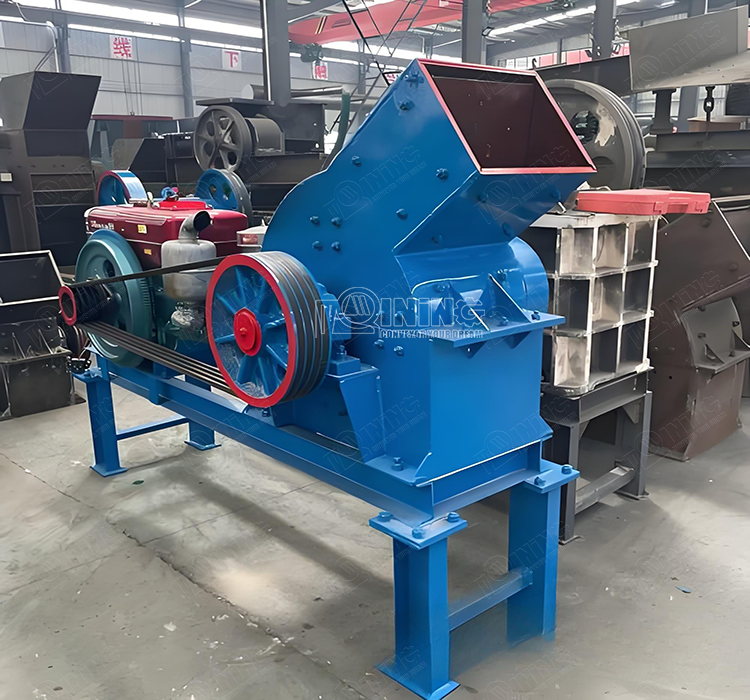

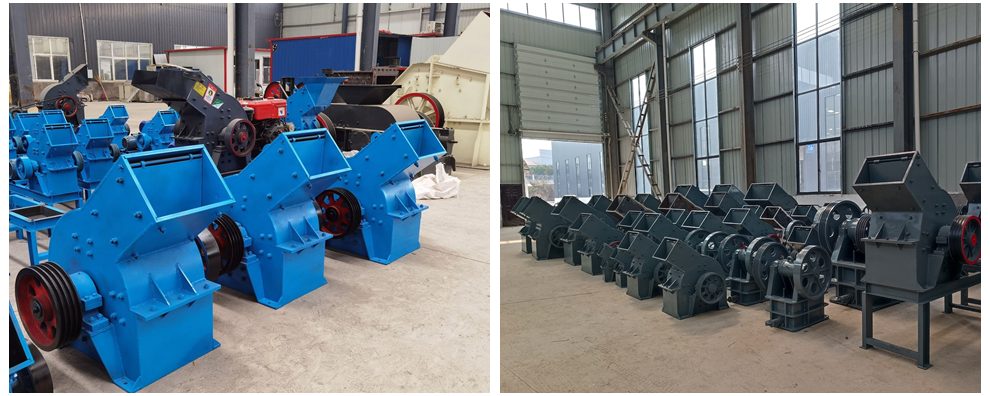

Hammer crusher for sale

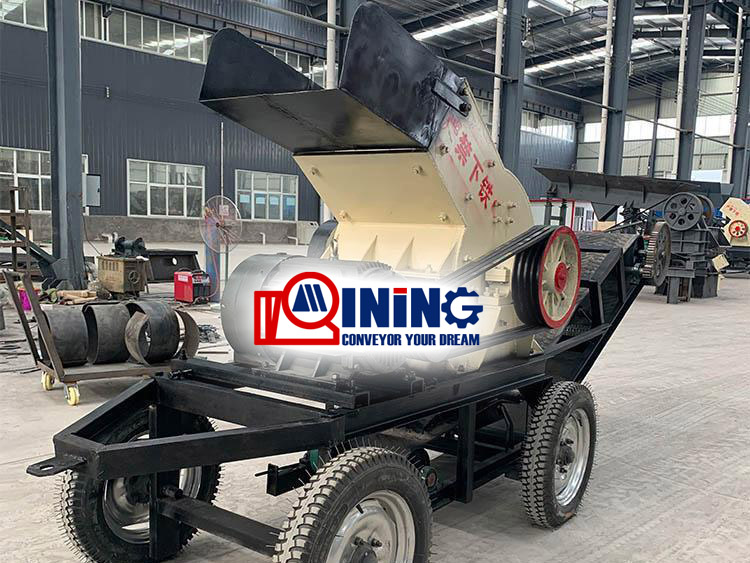

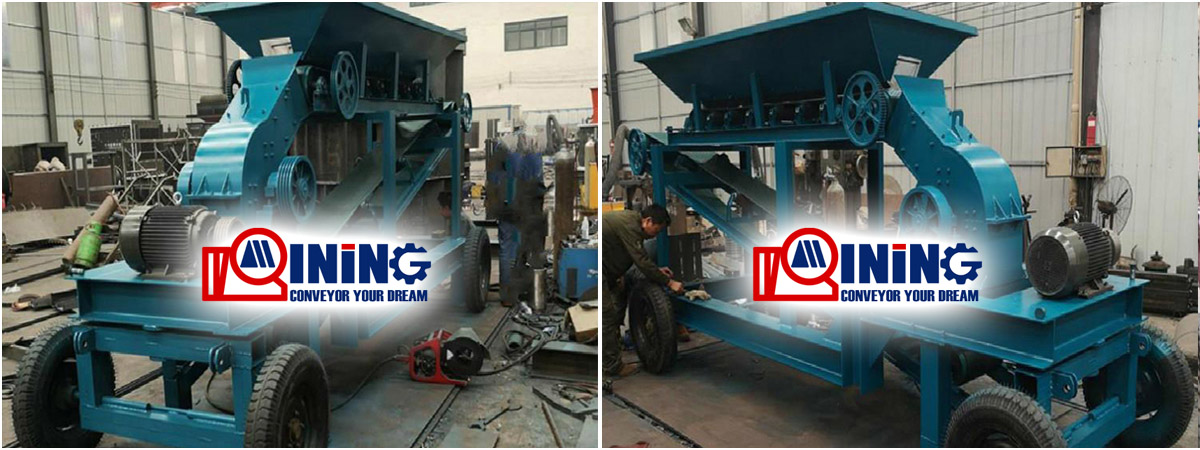

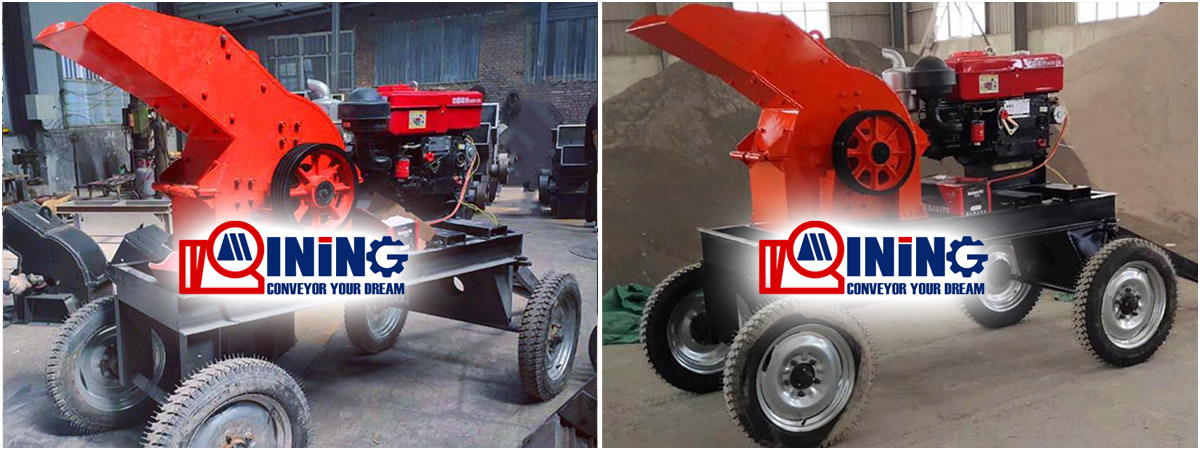

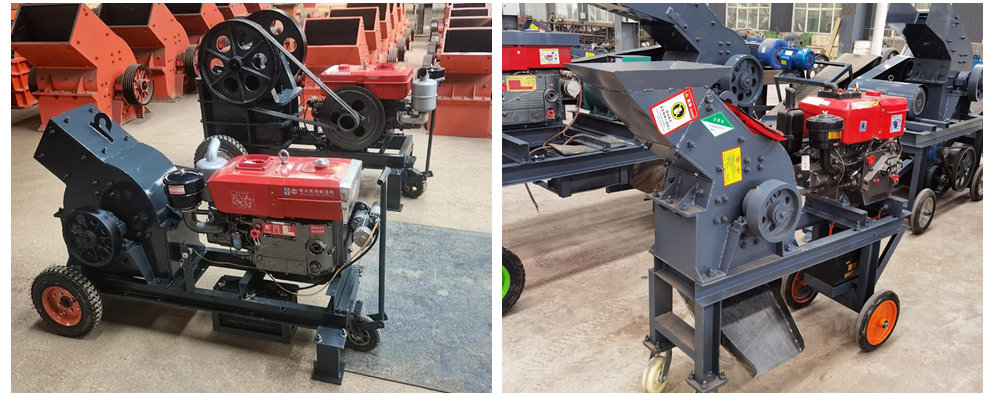

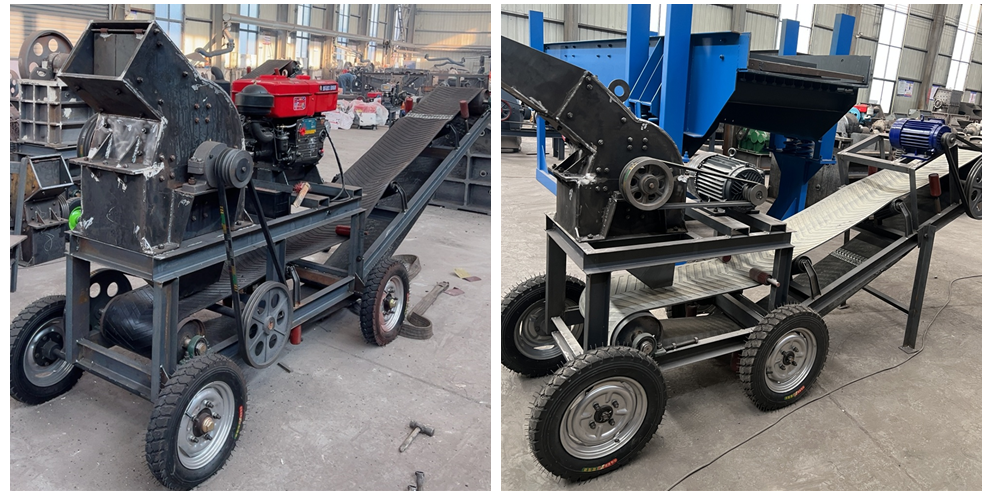

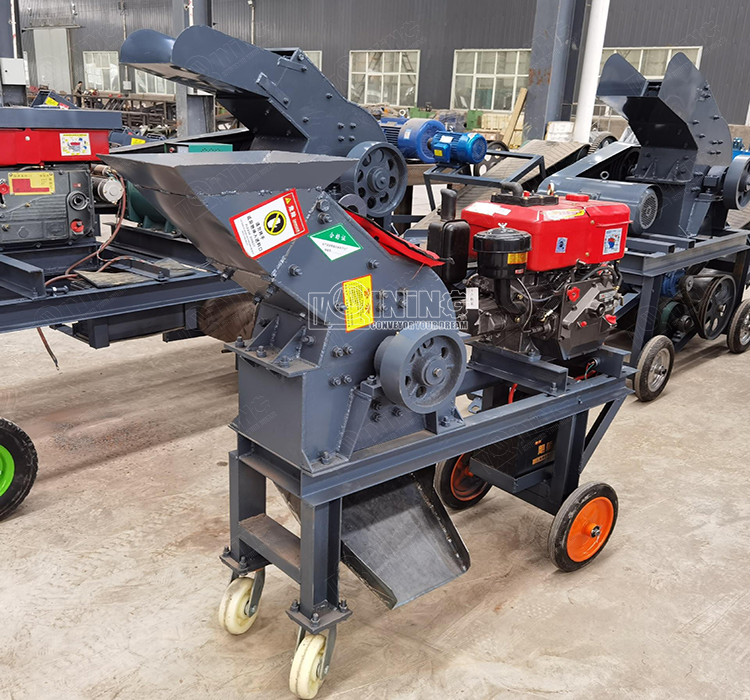

Portable hammer mill for sale

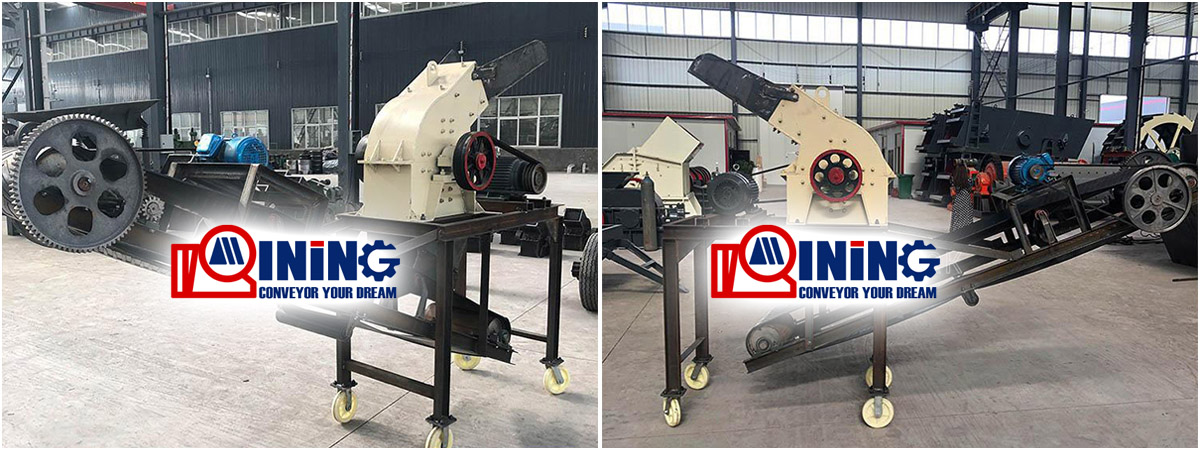

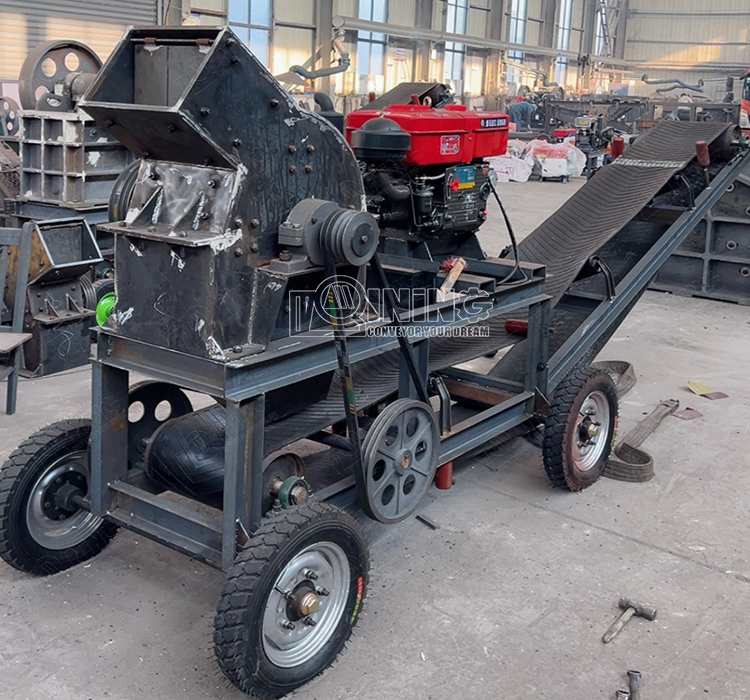

Hammer crusher with belt for sale

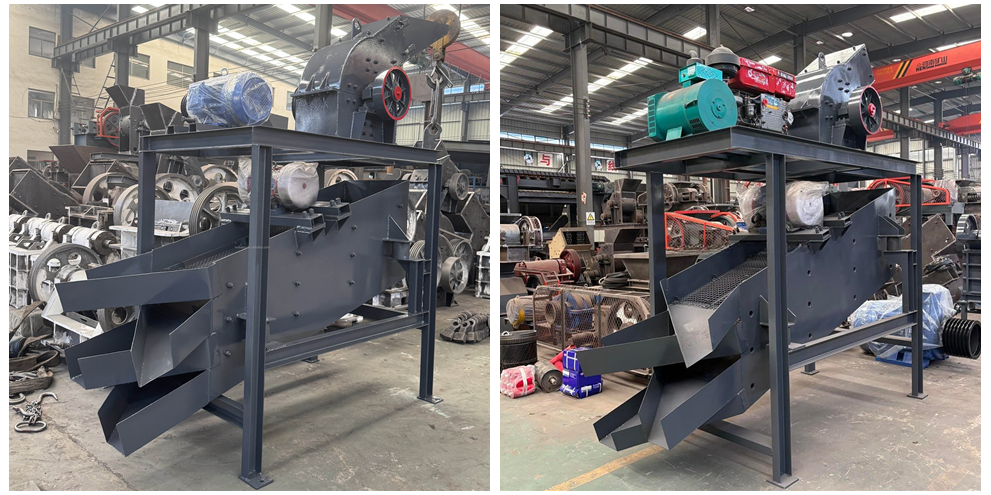

Hammer crusher with feeder for sale

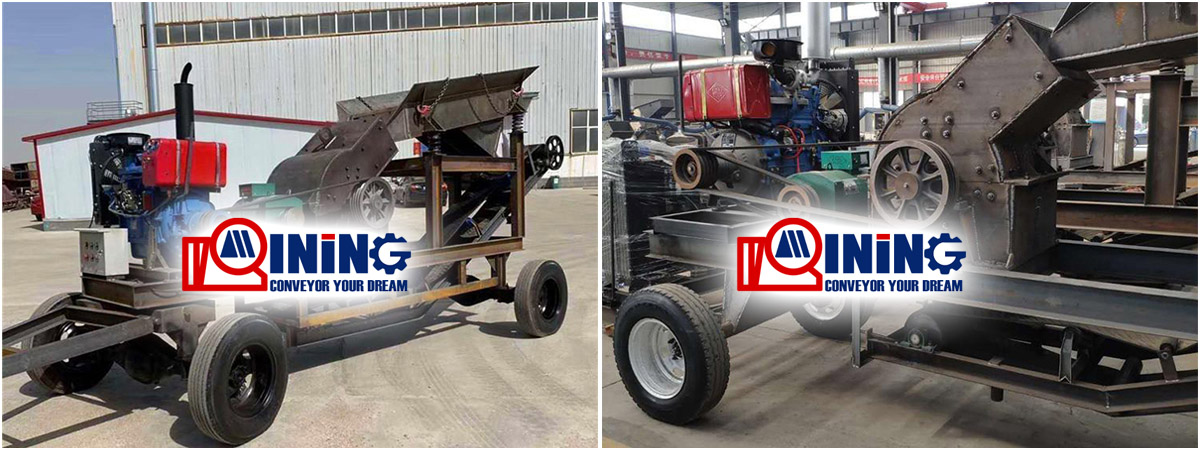

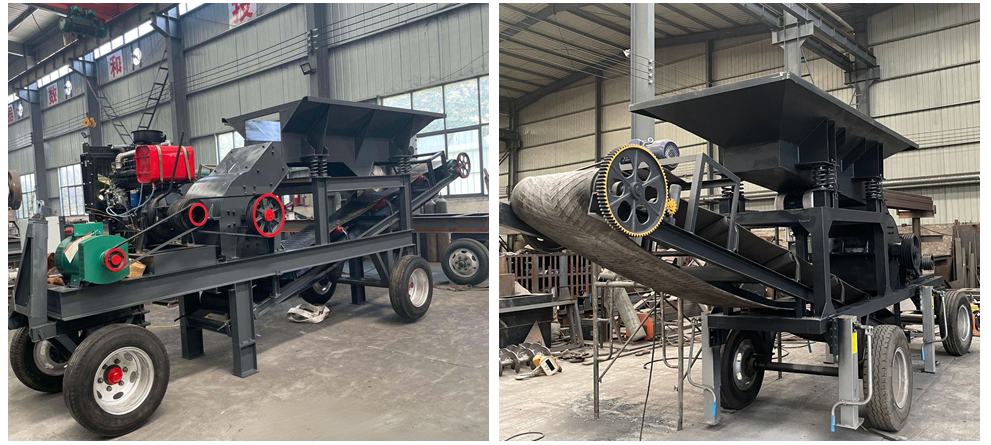

Mobile Hammer crusher station for sale

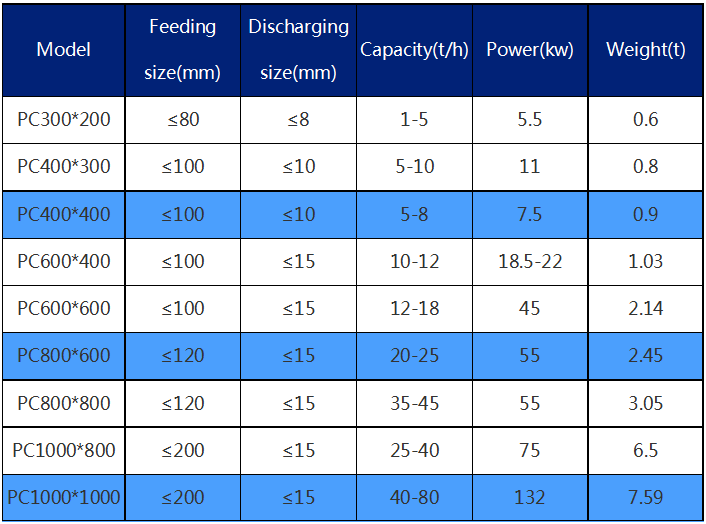

Parameter of the Portable hammer mill
Features
1. Big reduction ratio: Maximum feeding size is 1.3-1.5m; 3-150mm of discharging size.
2. High fineness of discharging size: favorable shape with aggregate, the powdery material is no more than 20%.
3. Simple process: the two or three stage crushing is reduced into single stage.
4. Economical: small capacity of matched motor greatly reduces the production cost.
5. Low running cost: smaller power, so the production cost is decreased greatly.
