Stone jaw crusher
China PE 150 250 400 600 stone jaw crusher for sale
Description:

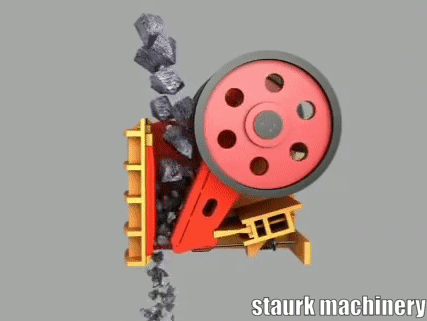

Large stone jaw crusher working video
Stone jaw crusher test video
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Jaw crusher Structure

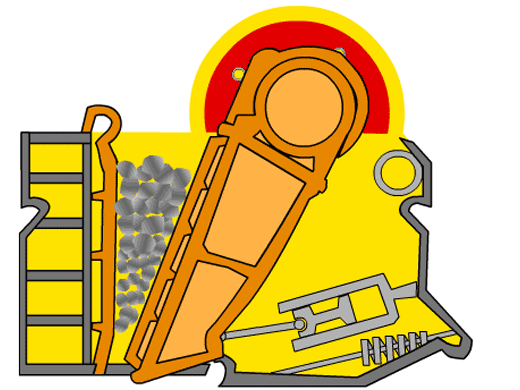

Working principle
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
Related:
Jaw crushr operate manual:1.How to install the jaw crusher?2.how to opreate the jaw crusher?3.how to repair and examine the jaw crusher?

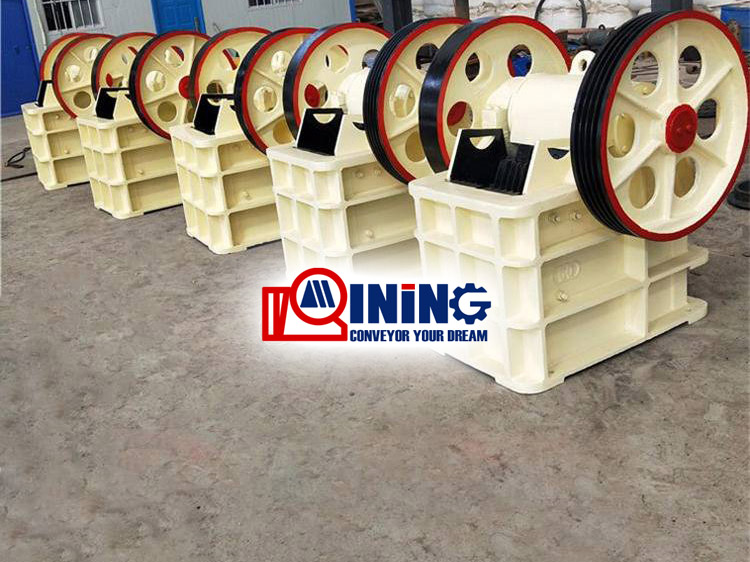

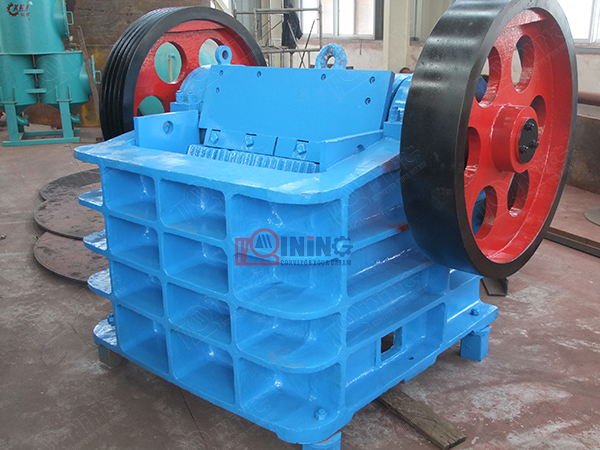

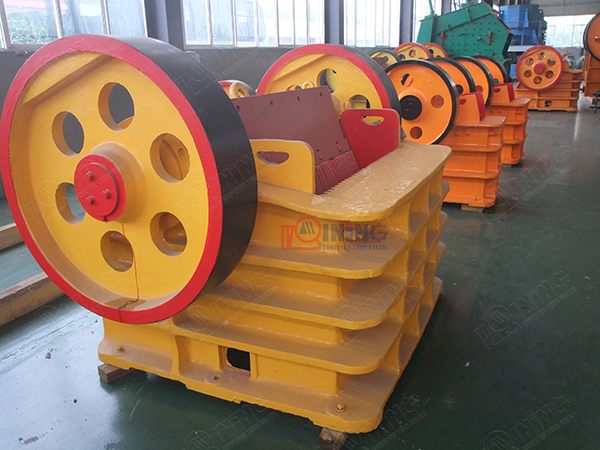

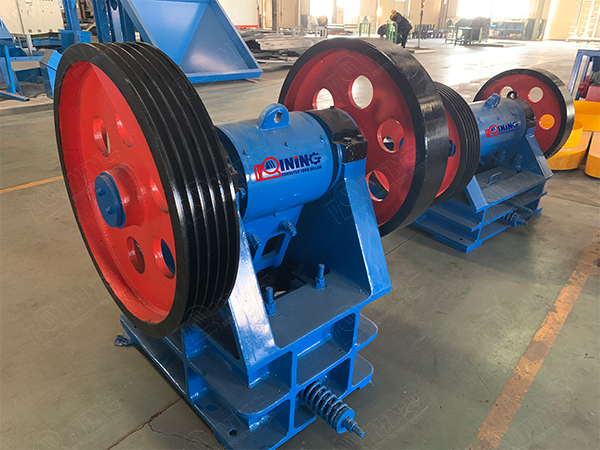

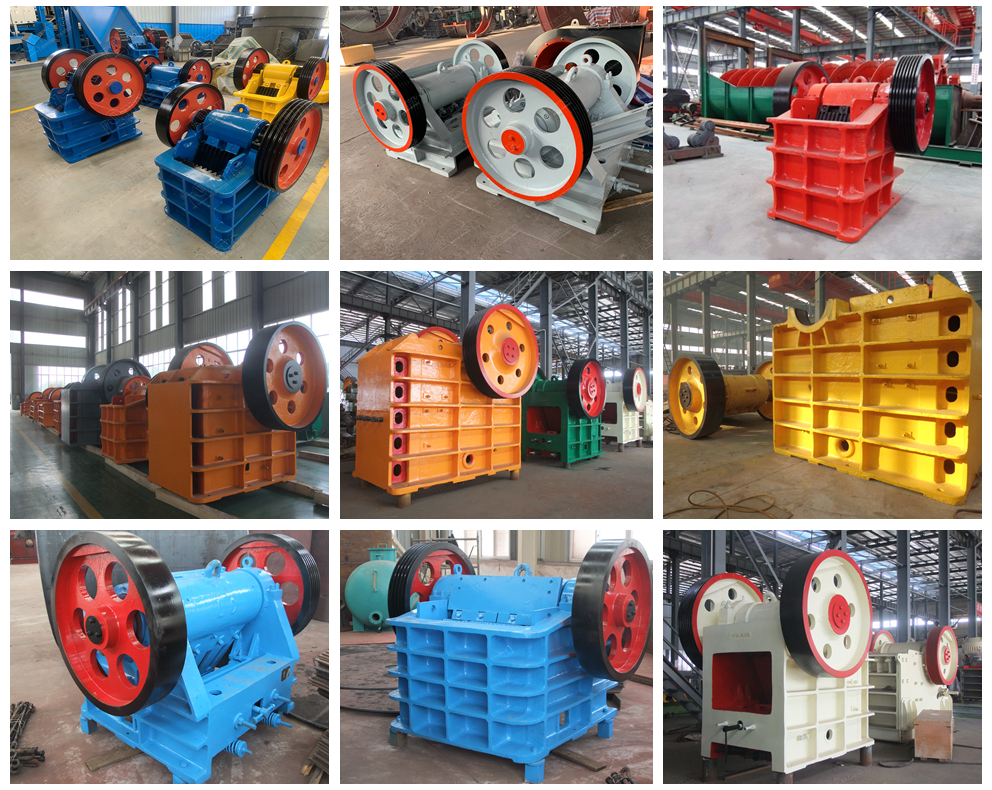

Jaw crusher for sale
Parameter of the Stone jaw crusher
| Model | Max-feeding size(mm) | Discharging size(mm) | Capacity(tph) | Motor model | Power(kw) | Spindle speed(rpm) | Dimension(L*W*H mm) | Weight(t) |
| PEF150×250 | 125 | 10～40 | 1～4 | Y132S—4 | 5.5 | 300 | 875×745×935 | 0.6 |
| PEF250×400 | 210 | 20～60 | 3～13 | Y180L—6 | 15 | 300 | 1320×1210×1220 | 2.8 |
| PEF400×600 | 350 | 40～110 | 10～34 | Y250M—8 | 30 | 275 | 1700×1742×1530 | 6.7 |
| PEF500×750 | 425 | 50～100 | 28～60 | Y280M—6 | 55 | 275 | 1890×1916×1870 | 9.9 |
| PEF600×900 | 500 | 75～200 | 56～192 | JR117—8 | 80 | 250 | 2600×3700×2400 | 16.8 |
| PEX150×500 | 120 | 10～40 | 3～15 | Y160L—6 | 11 | 320 | 1170×1276×1082 | 2.5 |
| PEX150×750 | 120 | 10～50 | 8～35 | Y200L—6 | 18.5 | 300 | 1215×1521×1031 | 3.5 |
| PEX250×750 | 210 | 15～50 | 13～45 | Y225M—6 | 30 | 300 | 1400×1691×1412 | 5.8 |
| PEX250×1000 | 210 | 15～50 | 15～50 | Y225M—6 | 37 | 280 | 1530×1992×1380 | 6.4 |
| PEX250×1200 | 210 | 15～50 | 20～60 | JR115—8 | 37 | 330 | 1840×2192×1580 | 7.7 |
FAQ:
1. what is the output size of the jaw crusher?
2. what is the input size of the jaw crusher?
3. what is the capacity of the jaw crusher?
4. what is the powof the jaw crusher?
Answer:
these are normal qustions about jaw crusher
For example:
PE150x250 jaw crusher
input size: < 125 mm output size:10 - 40 mm
capacity:2 - 6 ton per hour power: 7.5 kw
PE200x350 jaw crusher
input size: < 160 mm output size:10 - 50 mm
capacity:6 - 10 ton per hour power: 7.5 kw
PE250x400 jaw crusher
input size: < 210 mm output size:20 - 60 mm
capacity:8 - 16 ton per hour power: 15 kw
you can check the parameter below.
We supply the different crushers:
1.The stationary crusher with electric motor.
2.The stationary crusher with diesel engine.
3.The mobile crusher with electric motor.

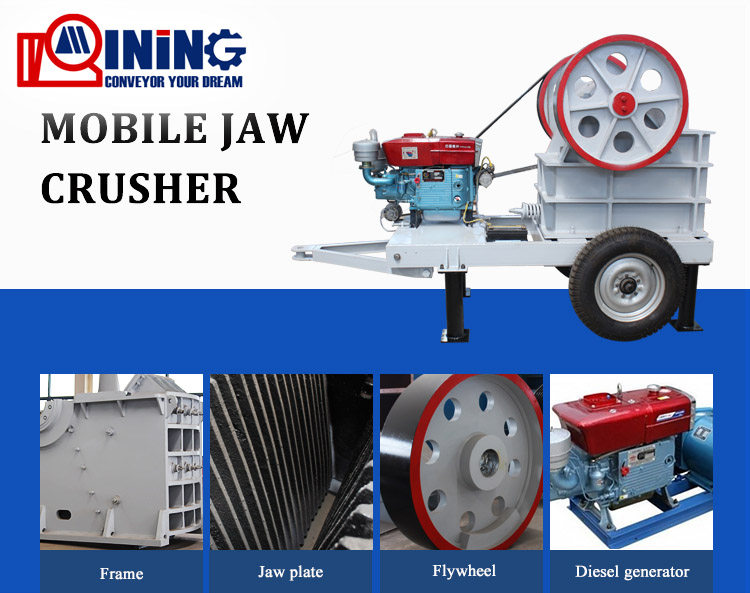

4.The mobile crusher with diesel engine.
5.The crusher with diesel engine and vibrating screen.
6.The crusher with electric motor and vibrating screen.
Features
1. Be movable and drive by diesel engine if the working site is limited
2. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
3. Large crushing ratio, uniform products particle size
4. Pad-style nesting population adjustment devices, and ease of adjustment range
5. Simple and reliable structure,low operation costs
6. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
7. Low noise and less dust
