Tyre ball mill
Tire tyre ball mill manufacturer China Henanmining
What is a tyre ball mill ?
Tyre ball mill are mainly suitable for dry and wet grinding solutions in the electric power and mining industries; due to the tire-driven method, the inner liner of the ball mill is generally made of rubber liner with light weight, low noise and high wear resistance. And sometimes manganese steel liner is also ok . The grinding medium can be steel balls, ceramic grinding balls, steel rods or stone balls, etc.
Tire ball mill consists of Feed chute,Rubber Liner and Lifter Plate Assemblies,Flange,Rubber Lined Discharge Cone,inspection hole,discharge port,Overflow,Custom wheels and hub assemblies,heavy tires,Heavy Structural Base Frame,Helical Gearbox,motor,and Cylinder etc
The difference between tyre ball mill with ordinary ball mill
1. Transmission method

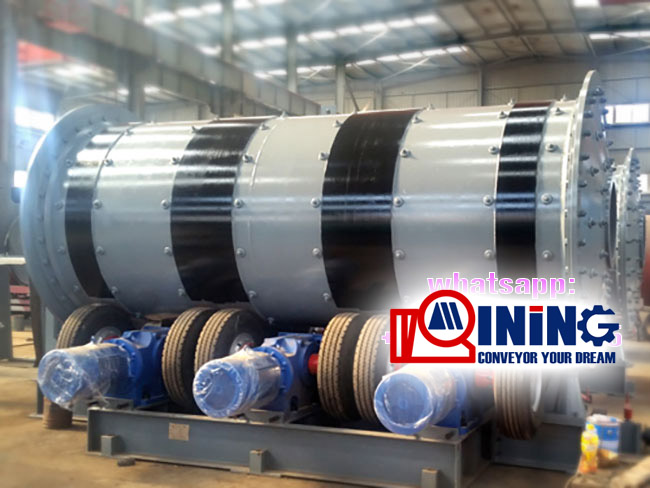

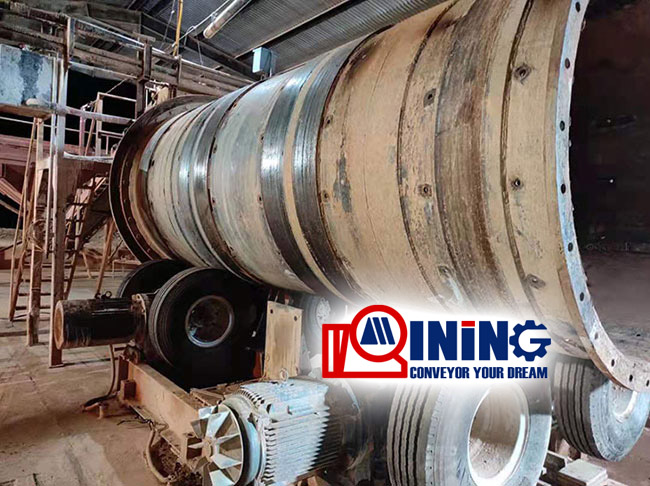

Tire ball mills usually use tires as transmission
Ordinary ball mills use gear drive, ceramic ball mills mostly use belt drive
2. Liner

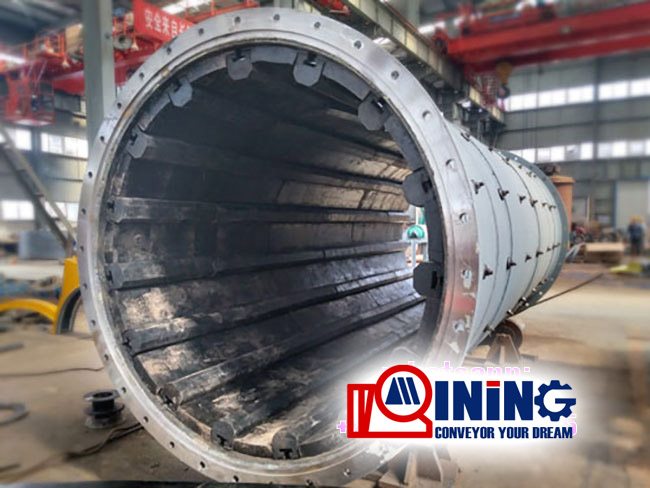

Tire ball mills usually use rubber liner, but can also use high manganese steel liner,
Ordinary ball mill usually use manganese steel liner, polyurethane linings, ceramic liner and other materials
Parameter of the Tyre ball mill
| Model | Diameter(mm) | Length(mm) | Speed(r/min) | Capacity(t/h) | Power(kw) | Weight(t) |
|---|---|---|---|---|---|---|
| ST2295 | 2200 | 9500 | 21.4 | 14-15 | 475 | 68.2 |
| ST22110 | 2200 | 11000 | 21.4 | 15.1-16.1 | 570 | 85.6 |
| ST24110 | 2400 | 11000 | 21.68 | 20.6-22.7 | 630 | 108 |
| ST24130 | 2400 | 13000 | 19.4 | 21.6-23.8 | 800 | 121 |
| ST26130 | 2600 | 13000 | 19.7 | 24.6-27.1 | 1000 | 169.8 |
| ST3090 | 3000 | 9000 | 18.7 | 26.6-28.5 | 1000 | 161 |
| ST30110 | 3000 | 11000 | 18.7 | 28.6-32.8 | 1250 | 183.5 |
| ST30130 | 3000 | 13000 | 18.7 | 33-36 | 1250 | 199.5 |
| ST32120 | 3200 | 12000 | 17.8 | 31.8-38.2 | 1400 | 213 |
Features:
1. Simple structure, no casting large gear ring, bearings and lubrication system, greatly reducing maintenance costs
2. Short delivery time, low installation cost, and minimizing the use of required concrete as much as possible

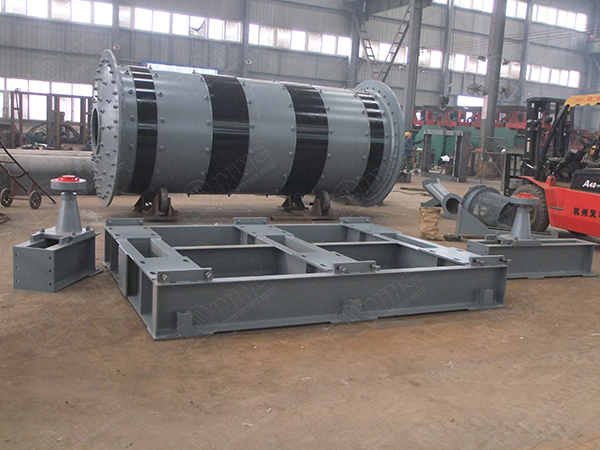

3. Adopting a steel structure base, sturdy and durable
4. No ring gear, reduction transmission device, steel wheel or bearing
5. Ready made standard components, easy to replace, reduce downtime
6. Wear resistant truck tires, easy to purchase locally
7. Customizable discharge method (overflow discharge or grid discharge)
8. Each section has quality inspection and testing, and is tested before leaving the factory
9. Rubber lifting plate, long service life, easy to replace
10. Easy maintenance and repair
